KB-S Kabelbinder
Merkmale
- Kabelbinder für den Einsatz im Außenbereich, UV-beständig
- Einsatztemperatur: -40°C bis +85°C, kurzzeitig: +110°C
- Verarbeitungstemperatur: -10°C bis +60°C
- Material: Nylon 66, UL94V-2
- Farbe: schwarz

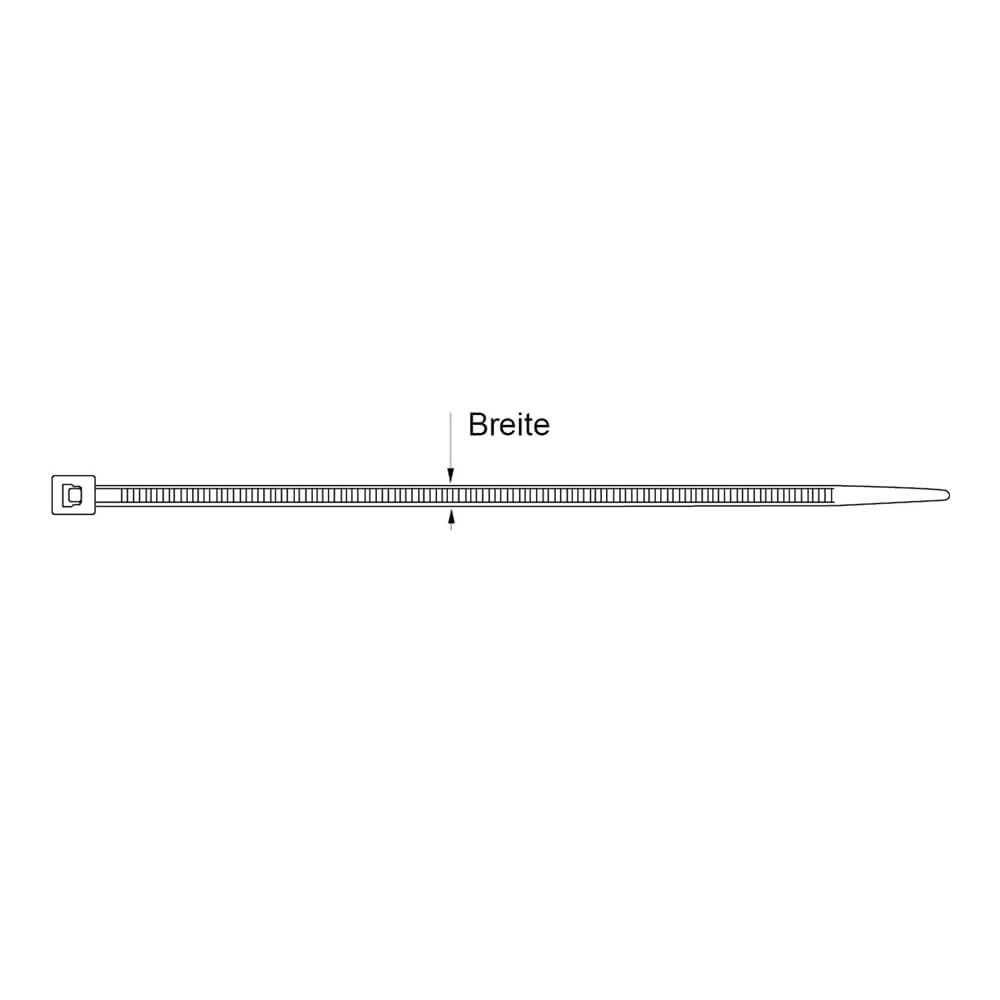

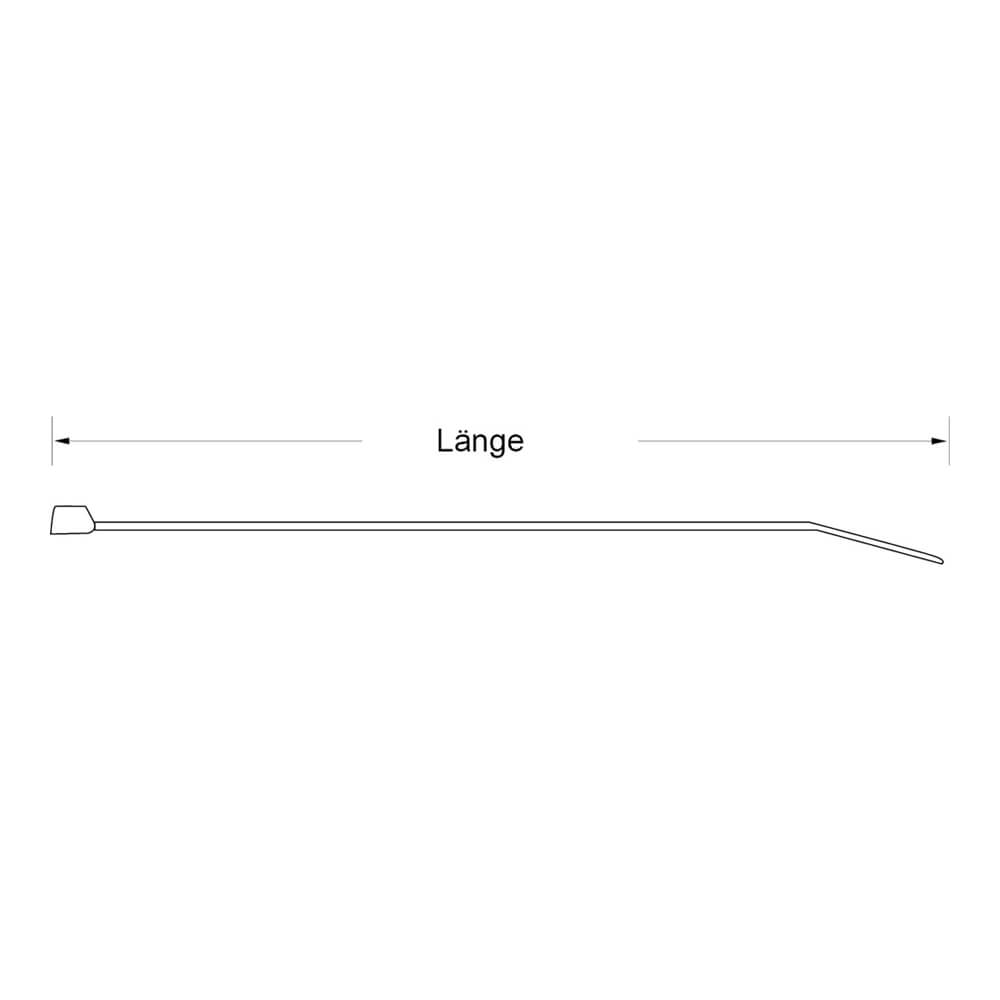

Technische Zeichnungen
Abmessungen in mm
Produktvarianten
Typen, Maße und weitere Daten
| Art.-Nr. | Typ | Länge (mm) | Breite (mm) | min. Bündel-Ø (mm) | max. Bündel-Ø (mm) | Zugkraft (kg) | Zugkraft (N) | VPE (Stck.) | Datenblatt | |
|---|---|---|---|---|---|---|---|---|---|---|
| 20322075 | KB2,2x75S | 75,0 | 2,2 | 0,75 | 15,0 | 6,12 | 60,0 | 100 | Anfrage | |
| 20222075 | KB2,2x75S | 75,0 | 2,2 | 0,75 | 15,0 | 6,12 | 60,0 | 1.000 | Anfrage | |
| 20325088 | KB2,5x88S | 88,0 | 2,5 | 1,0 | 18,0 | 8,16 | 80,0 | 100 | Anfrage | |
| 20225088 | KB2,5x88S | 88,0 | 2,5 | 1,0 | 18,0 | 8,16 | 80,0 | 1.000 | Anfrage | |
| 20325098 | KB2,5x98S | 98,0 | 2,5 | 1,0 | 21,0 | 8,16 | 80,0 | 100 | Anfrage | |
| 20225098 | KB2,5x98S | 98,0 | 2,5 | 1,0 | 21,0 | 8,16 | 80,0 | 1.000 | Anfrage | |
| 20326130 | KB2,5x135S | 135,0 | 2,5 | 1,0 | 32,0 | 8,16 | 80,0 | 100 | Anfrage | |
| 20226130 | KB2,5x135S | 135,0 | 2,5 | 1,0 | 32,0 | 8,16 | 80,0 | 1.000 | Anfrage | |
| 20326200 | KB2,6x200S | 200,0 | 2,6 | 1,0 | 52,0 | 8,16 | 80,0 | 100 | Anfrage | |
| 20226200 | KB2,6x200S | 200,0 | 2,6 | 1,0 | 52,0 | 8,16 | 80,0 | 100 | Anfrage | |
| 20329160 | KB2,6x160S | 160,0 | 2,6 | 1,0 | 40,0 | 8,16 | 80,0 | 100 | Anfrage | |
| 20229160 | KB2,6x160S | 160,0 | 2,6 | 1,0 | 40,0 | 8,16 | 80,0 | 1.000 | Anfrage | |
| 20336140 | KB3,6x140S | 140,0 | 3,6 | 2,0 | 35,0 | 13,26 | 130,0 | 100 | Anfrage | |
| 20236140 | KB3,6x140S | 140,0 | 3,6 | 2,0 | 35,0 | 13,26 | 130,0 | 1.000 | Anfrage | |
| 20236150 | KB3,6x150S | 150,0 | 3,6 | 2,0 | 35,0 | 13,26 | 130,0 | 1.000 | Anfrage | |
| 20336200 | KB3,6x200S | 200,0 | 3,6 | 2,0 | 50,0 | 13,26 | 130,0 | 100 | Anfrage | |
| 20236200 | KB3,6x200S | 200,0 | 3,6 | 2,0 | 50,0 | 13,26 | 130,0 | 1.000 | Anfrage | |
| 20336290 | KB3,6x290S | 290,0 | 3,6 | 2,0 | 80,0 | 13,26 | 130,0 | 100 | Anfrage | |
| 20236290 | KB3,6x290S | 290,0 | 3,6 | 2,0 | 80,0 | 13,26 | 130,0 | 1.000 | Anfrage | |
| 20236370 | KB3,6x370S | 370,0 | 3,6 | 2,0 | 103,0 | 13,26 | 130,0 | 100 | Anfrage | |
| 20345160 | KB4,5x160S | 160,0 | 4,5 | 2,5 | 40,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20245160 | KB4,5x160S | 160,0 | 4,5 | 2,5 | 40,0 | 22,44 | 220,0 | 1.000 | Anfrage | |
| 20348120 | KB4,5x120S | 120,0 | 4,5 | 2,5 | 24,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20248120 | KB4,5x120S | 120,0 | 4,5 | 2,5 | 24,0 | 22,44 | 220,0 | 1.000 | Anfrage | |
| 20348178 | KB4,8x178S | 178,0 | 4,8 | 2,0 | 45,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20248178 | KB4,8x178S | 178,0 | 4,8 | 2,0 | 45,0 | 22,44 | 220,0 | 1.000 | Anfrage | |
| 20348200 | KB4,8x200S | 200,0 | 4,8 | 3,0 | 50,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20248200 | KB4,8x200S | 200,0 | 4,8 | 3,0 | 50,0 | 22,44 | 220,0 | 1.000 | Anfrage | |
| 20248290 | KB4,8x290S | 290,0 | 4,8 | 3,5 | 79,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20248360 | KB4,8x360S | 360,0 | 4,8 | 3,5 | 103,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20248390 | KB4,8x390S | 390,0 | 4,8 | 3,5 | 106,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20248430 | KB4,8x430S | 430,0 | 4,8 | 3,5 | 115,0 | 22,44 | 220,0 | 100 | Anfrage | |
| 20276150 | KB7,6x150S | 150,0 | 7,6 | 2,0 | 35,0 | 54,0 | 540,0 | 100 | Anfrage | |
| 20278180 | KB7,8x180S | 180,0 | 7,8 | 3,5 | 45,0 | 55,0 | 540,0 | 100 | Anfrage | |
| 20278240 | KB7,8x240S | 240,0 | 7,8 | 3,5 | 63,0 | 55,0 | 540,0 | 100 | Anfrage | |
| 20278300 | KB7,8x300S | 300,0 | 7,8 | 4,0 | 80,0 | 55,0 | 540,0 | 100 | Anfrage | |
| 20278365 | KB7,8x365S | 365,0 | 7,8 | 8,0 | 100,0 | 55,0 | 540,0 | 100 | Anfrage | |
| 20278450 | KB7,8x450S | 450,0 | 7,8 | 35,0 | 130,0 | 55,0 | 540,0 | 100 | Anfrage | |
| 20278540 | KB7,8x540S | 540,0 | 7,8 | 35,0 | 158,0 | 55,0 | 540,0 | 100 | Anfrage | |
| 20278750 | KB7,8x750S | 750,0 | 7,8 | 35,0 | 220,0 | 55,0 | 540,0 | 100 | Anfrage | |
| 202881020 | KB8,8x1020S | 1.020,0 | 8,8 | 7,0 | 295,0 | 80,0 | 780,0 | 100 | Anfrage | |
| 20290780 | KB9,0x780S | 780,0 | 9,0 | 32,0 | 233,0 | 71,4 | 700,0 | 100 | Anfrage | |
| 20290920 | KB9,0x920S | 920,0 | 8,8 | 9,0 | 280,0 | 80,0 | 800,0 | 100 | Anfrage | |
| 202126225 | KB12,6x225S | 225,0 | 12,6 | 7,5 | 57,0 | 110,0 | 1.080,0 | 50 | Anfrage | |
| 202126480 | KB12,6x480S | 480,0 | 12,6 | 30,0 | 143,0 | 110,0 | 1.080,0 | 50 | Anfrage | |
| 202126720 | KB12,6x720S | 720,0 | 12,6 | 30,0 | 213,0 | 110,0 | 1.080,0 | 50 | Anfrage | |
| 202126850 | KB12,6x850S | 850,0 | 12,6 | 40,0 | 255,0 | 110,0 | 1.080,0 | 50 | Anfrage | |
| 2021261000 | KB12,6x1000S | 1.000,0 | 12,6 | 40,0 | 302,0 | 110,0 | 1.080,0 | 50 | Anfrage |
