Isolierte Aderendhülsen
Merkmale
- isolierte Aderendhülsen mit Kunststoffkragen
- Einführungstrichter aus Polypropylen
- wärmebeständig bis +105°C
- Material: E-Cu, galvanisch verzinnt (min. 3µm)

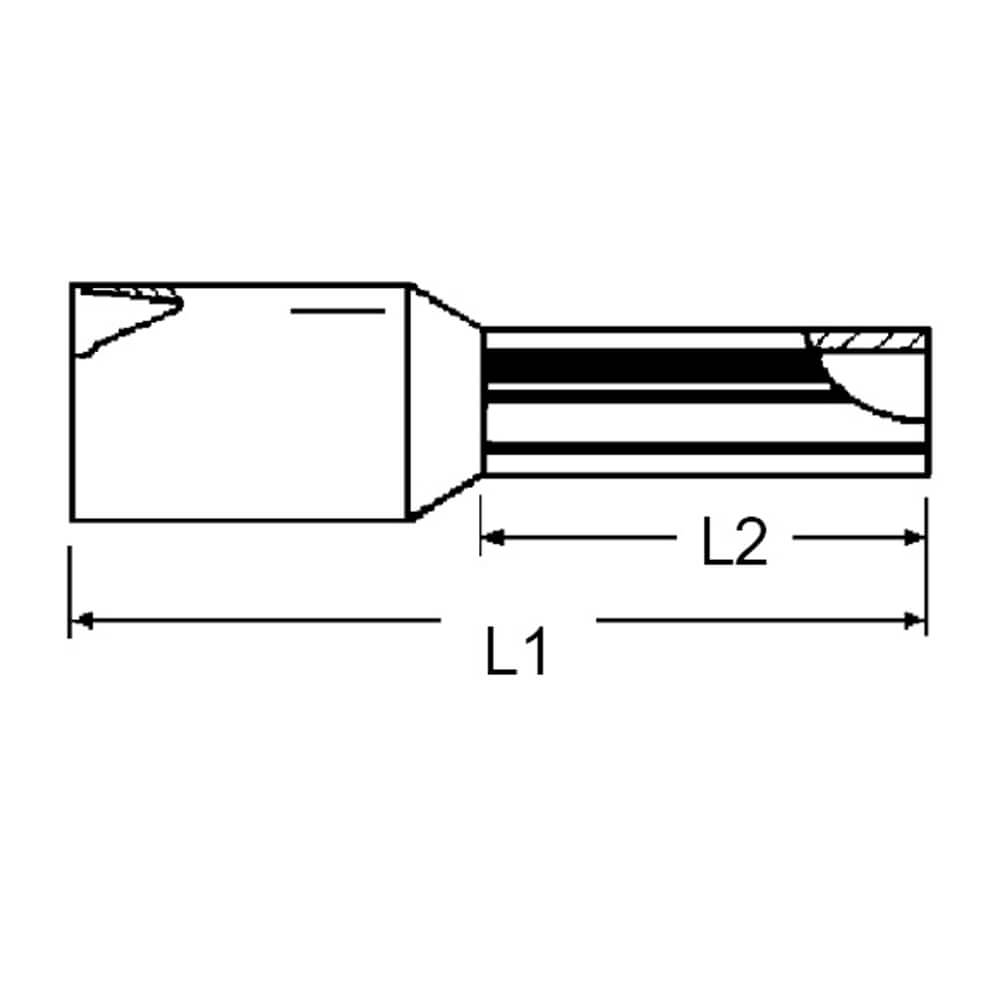

Technische Zeichnungen
Abmessungen in mm
Produktvarianten
nach DIN 46228/4
| Art.-Nr. | Größe (mm²) | L1 (mm) | L2 (mm) | Farbe | Datenblatt | |
|---|---|---|---|---|---|---|
| 30002050 | 0,50 | 12,0 | 6,0 K | weiß | Anfrage | |
| 30002051 | 0,50 | 14,0 | 8,0 N | weiß | Anfrage | |
| 30002052 | 0,50 | 16,0 | 10,0 HL | weiß | Anfrage | |
| 30001070 | 0,75 | 12,0 | 6,0 K | grau | Anfrage | |
| 30001071 | 0,75 | 14,0 | 8,0 N | grau | Anfrage | |
| 30001072 | 0,75 | 16,0 | 10,0 HL | grau | Anfrage | |
| 30001073 | 0,75 | 18,0 | 12,0 L | grau | Anfrage | |
| 30002100 | 1,00 | 12,0 | 6,0 K | rot | Anfrage | |
| 30002101 | 1,00 | 14,0 | 8,0 N | rot | Anfrage | |
| 30002102 | 1,00 | 16,0 | 10,0 HL | rot | Anfrage | |
| 30002103 | 1,00 | 18,0 | 12,0 L | rot | Anfrage | |
| 30002150 | 1,50 | 12,0 | 6,0 K | schwarz | Anfrage | |
| 30002151 | 1,50 | 14,0 | 8,0 N | schwarz | Anfrage | |
| 30002152 | 1,50 | 16,0 | 10,0 HL | schwarz | Anfrage | |
| 30001154 | 1,50 | 18,0 | 12,0 HLS | schwarz | Anfrage | |
| 30001153 | 1,50 | 24,0 | 18,0 L | schwarz | Anfrage | |
| 30001251 | 2,50 | 14,0 | 8,0 N | blau | Anfrage | |
| 30001254 | 2,50 | 16,0 | 10,0 HLS | blau | Anfrage | |
| 30001252 | 2,50 | 18,0 | 12,0 HL | blau | Anfrage | |
| 30001253 | 2,50 | 24,0 | 18,0 L | blau | Anfrage | |
| 30001401 | 4,00 | 17,0 | 10,0 N | grau | Anfrage | |
| 30001402 | 4,00 | 20,0 | 12,0 HL | grau | Anfrage | |
| 30001403 | 4,00 | 26,0 | 18,0 L | grau | Anfrage | |
| 30001601 | 6,00 | 20,0 | 12,0 N | gelb | Anfrage | |
| 30001603 | 6,00 | 26,0 | 18,0 L | gelb | Anfrage | |
| 30001111 | 10,00 | 22,0 | 12,0 N | rot | Anfrage | |
| 30001113 | 10,00 | 28,0 | 18,0 L | rot | Anfrage | |
| 30001171 | 16,00 | 24,0 | 12,0 N | blau | Anfrage | |
| 30001173 | 16,00 | 28,0 | 18,0 L | blau | Anfrage | |
| 30001261 | 25,00 | 30,0 | 16,0 N | gelb | Anfrage | |
| 30001262 | 25,00 | 30,0 | 18,0 HL | gelb | Anfrage | |
| 30001263 | 25,00 | 36,0 | 22,0 L | gelb | Anfrage | |
| 30002361 | 35,00 | 30,0 | 16,0 N | rot | Anfrage | |
| 30001362 | 35,00 | 30,0 | 18,0 HL | rot | Anfrage | |
| 30002363 | 35,00 | 39,0 | 25,0 L | rot | Anfrage | |
| 30001511 | 50,00 | 36,0 | 20,0 N | blau | Anfrage | |
| 30001513 | 50,00 | 40,0 | 25,0 L | blau | Anfrage | |
| 30002701 | 70,00 | 37,0 | 21,0 N | gelb | Anfrage | |
| 30002951 | 95,00 | 44,0 | 25,0 N | rot | Anfrage | |
| 300021201 | 120,00 | 48,0 | 27,0 N | blau | Anfrage | |
| 300021501 | 150,00 | 58,0 | 32,0 N | gelb | Anfrage |
Farbreihe 1
| Art.-Nr. | Größe (mm²) | L1 (mm) | L2 (mm) | Farbe | Datenblatt | |
|---|---|---|---|---|---|---|
| 30002011 | 0,14 | 10,0 | 6,0 N | braun | Anfrage | |
| 30002013 | 0,14 | 12,0 | 8,0 L | braun | Anfrage | |
| 30002021 | 0,25 | 10,0 | 6,0 N | violett | Anfrage | |
| 30001021 | 0,25 | 10,0 | 6,0 N | hellgelb | Anfrage | |
| 30002023 | 0,25 | 12,0 | 8,0 L | violett | Anfrage | |
| 30001023 | 0,25 | 12,0 | 8,0 L | hellgelb | Anfrage | |
| 30002031 | 0,34 | 10,0 | 6,0 N | rosa | Anfrage | |
| 30000031 | 0,34 | 10,0 | 6,0 N | hellgrün | Anfrage | |
| 30001031 | 0,34 | 10,0 | 6,0 N | hellgelb | Anfrage | |
| 30002033 | 0,34 | 12,0 | 8,0 L | rosa | Anfrage | |
| 30000033 | 0,34 | 12,0 | 8,0 L | hellgrün | Anfrage | |
| 30001033 | 0,34 | 12,0 | 8,0 L | hellgelb | Anfrage | |
| 30002050 | 0,50 | 12,0 | 6,0 K | weiß | Anfrage | |
| 30002051 | 0,50 | 14,0 | 8,0 N | weiß | Anfrage | |
| 30002052 | 0,50 | 16,0 | 10,0 HL | weiß | Anfrage | |
| 30002070 | 0,75 | 12,0 | 6,0 K | hellblau | Anfrage | |
| 30002071 | 0,75 | 14,0 | 8,0 N | hellblau | Anfrage | |
| 30002072 | 0,75 | 16,0 | 10,0 HL | hellblau | Anfrage | |
| 30002073 | 0,75 | 18,0 | 12,0 L | hellblau | Anfrage | |
| 30002100 | 1,00 | 12,0 | 6,0 K | rot | Anfrage | |
| 30002101 | 1,00 | 14,0 | 8,0 N | rot | Anfrage | |
| 30002102 | 1,00 | 16,0 | 10,0 HL | rot | Anfrage | |
| 30002103 | 1,00 | 18,0 | 12,0 L | rot | Anfrage | |
| 30002150 | 1,50 | 12,0 | 6,0 K | schwarz | Anfrage | |
| 30002151 | 1,50 | 14,0 | 8,0 N | schwarz | Anfrage | |
| 30002152 | 1,50 | 16,0 | 10,0 HL | schwarz | Anfrage | |
| 30001154 | 1,50 | 18,0 | 12,0 HLS | schwarz | Anfrage | |
| 30001153 | 1,50 | 24,0 | 18,0 L | schwarz | Anfrage | |
| 30002251 | 2,50 | 14,0 | 8,0 N | grau | Anfrage | |
| 30002254 | 2,50 | 16,0 | 10,0 HLS | grau | Anfrage | |
| 30002252 | 2,50 | 18,0 | 12,0 HL | grau | Anfrage | |
| 30002253 | 2,50 | 24,0 | 18,0 L | grau | Anfrage | |
| 30002401 | 4,00 | 17,0 | 10,0 N | orange | Anfrage | |
| 30002402 | 4,00 | 20,0 | 12,0 HL | orange | Anfrage | |
| 30002403 | 4,00 | 26,0 | 18,0 L | orange | Anfrage | |
| 30002601 | 6,00 | 20,0 | 12,0 N | grün | Anfrage | |
| 30002603 | 6,00 | 26,0 | 18,0 L | grün | Anfrage | |
| 30002111 | 10,00 | 22,0 | 12,0 N | braun | Anfrage | |
| 30002113 | 10,00 | 28,0 | 18,0 L | braun | Anfrage | |
| 30002171 | 16,00 | 24,0 | 12,0 N | elfenbein | Anfrage | |
| 30002173 | 16,00 | 28,0 | 18,0 L | elfenbein | Anfrage | |
| 30002261 | 25,00 | 30,0 | 16,0 N | schwarz | Anfrage | |
| 30002262 | 25,00 | 30,0 | 18,0 HL | schwarz | Anfrage | |
| 30002263 | 25,00 | 36,0 | 22,0 L | schwarz | Anfrage | |
| 30002361 | 35,00 | 30,0 | 16,0 N | rot | Anfrage | |
| 30001362 | 35,00 | 30,0 | 18,0 HL | rot | Anfrage | |
| 30002363 | 35,00 | 39,0 | 25,0 L | rot | Anfrage | |
| 30002511 | 50,00 | 36,0 | 20,0 N | blau | Anfrage | |
| 30002513 | 50,00 | 40,0 | 25,0 L | blau | Anfrage | |
| 30002701 | 70,00 | 37,0 | 21,0 N | gelb | Anfrage | |
| 30002951 | 95,00 | 44,0 | 25,0 N | rot | Anfrage | |
| 300021201 | 120,00 | 48,0 | 27,0 N | blau | Anfrage | |
| 300021501 | 150,00 | 58,0 | 32,0 N | gelb | Anfrage |
Farbreihe 2
| Art.-Nr. | Größe (mm²) | L1 (mm) | L2 (mm) | Farbe | Datenblatt | |
|---|---|---|---|---|---|---|
| 30003011 | 0,14 | 10,0 | 6,0 N | grau | Anfrage | |
| 30003013 | 0,14 | 12,0 | 8,0 L | grau | Anfrage | |
| 30003021 | 0,25 | 10,0 | 6,0 N | hellblau | Anfrage | |
| 30003023 | 0,25 | 12,0 | 8,0 L | hellblau | Anfrage | |
| 30003031 | 0,34 | 10,0 | 6,0 N | türkis | Anfrage | |
| 30003033 | 0,34 | 12,0 | 8,0 L | türkis | Anfrage | |
| 30003050 | 0,50 | 12,0 | 6,0 K | orange | Anfrage | |
| 30003051 | 0,50 | 14,0 | 8,0 N | orange | Anfrage | |
| 30003052 | 0,50 | 16,0 | 10,0 HL | orange | Anfrage | |
| 30003070 | 0,75 | 12,0 | 6,0 K | weiß | Anfrage | |
| 30003071 | 0,75 | 14,0 | 8,0 N | weiß | Anfrage | |
| 30003072 | 0,75 | 16,0 | 10,0 HL | weiß | Anfrage | |
| 30003073 | 0,75 | 18,0 | 12,0 L | weiß | Anfrage | |
| 30003100 | 1,00 | 12,0 | 6,0 K | gelb | Anfrage | |
| 30003101 | 1,00 | 14,0 | 8,0 N | gelb | Anfrage | |
| 30003102 | 1,00 | 16,0 | 10,0 HL | gelb | Anfrage | |
| 30003103 | 1,00 | 18,0 | 12,0 L | gelb | Anfrage | |
| 30003150 | 1,50 | 12,0 | 6,0 K | dunkelrot | Anfrage | |
| 30003151 | 1,50 | 14,0 | 8,0 N | dunkelrot | Anfrage | |
| 30003152 | 1,50 | 16,0 | 10,0 HL | dunkelrot | Anfrage | |
| 30003154 | 1,50 | 18,0 | 12,0 HLS | dunkelrot | Anfrage | |
| 30003153 | 1,50 | 24,0 | 18,0 L | dunkelrot | Anfrage | |
| 30003251 | 2,50 | 14,0 | 8,0 N | blau | Anfrage | |
| 30003254 | 2,50 | 16,0 | 10,0 HLS | blau | Anfrage | |
| 30003252 | 2,50 | 18,0 | 12,0 HL | blau | Anfrage | |
| 30003253 | 2,50 | 24,0 | 18,0 L | blau | Anfrage | |
| 30003401 | 4,00 | 17,0 | 10,0 N | grau | Anfrage | |
| 30003402 | 4,00 | 20,0 | 12,0 HL | grau | Anfrage | |
| 30003403 | 4,00 | 26,0 | 18,0 L | grau | Anfrage | |
| 30003601 | 6,00 | 20,0 | 12,0 N | schwarz | Anfrage | |
| 30003603 | 6,00 | 26,0 | 18,0 L | schwarz | Anfrage | |
| 30003111 | 10,00 | 22,0 | 12,0 N | elfenbein | Anfrage | |
| 30003113 | 10,00 | 28,0 | 18,0 L | elfenbein | Anfrage | |
| 30003171 | 16,00 | 24,0 | 12,0 N | grün | Anfrage | |
| 30003173 | 16,00 | 28,0 | 18,0 L | grün | Anfrage | |
| 30003261 | 25,00 | 30,0 | 16,0 N | braun | Anfrage | |
| 30003262 | 25,00 | 30,0 | 18,0 HL | braun | Anfrage | |
| 30003263 | 25,00 | 36,0 | 22,0 L | braun | Anfrage | |
| 30003361 | 35,00 | 30,0 | 16,0 N | beige | Anfrage | |
| 30003362 | 35,00 | 30,0 | 18,0 HL | beige | Anfrage | |
| 30003363 | 35,00 | 39,0 | 25,0 L | beige | Anfrage | |
| 30003511 | 50,00 | 36,0 | 20,0 N | oliv | Anfrage | |
| 30003513 | 50,00 | 40,0 | 25,0 L | oliv | Anfrage | |
| 30002701 | 70,00 | 37,0 | 21,0 N | gelb | Anfrage | |
| 30002951 | 95,00 | 44,0 | 25,0 N | rot | Anfrage | |
| 300021201 | 120,00 | 48,0 | 27,0 N | blau | Anfrage | |
| 300021501 | 150,00 | 58,0 | 32,0 N | gelb | Anfrage |
