AH-PSW Abstandshülsen aus Kunststoff
Merkmale
- Material: Polystyrol (PS-W)
- Farbe: weiß
- temperaturbeständig bis +70°C

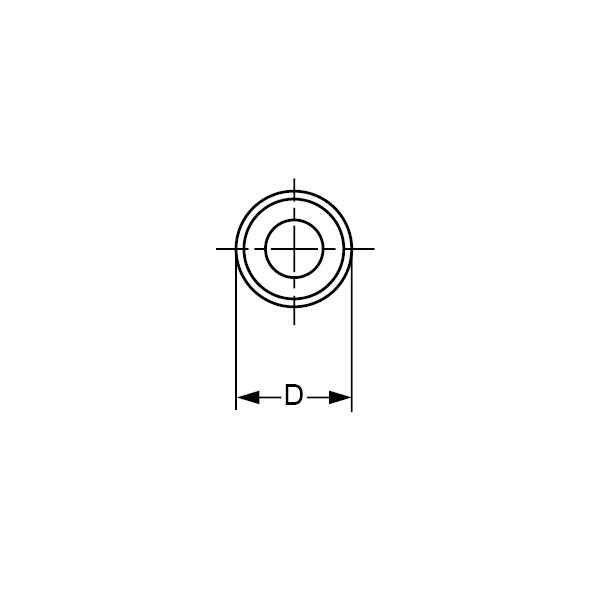

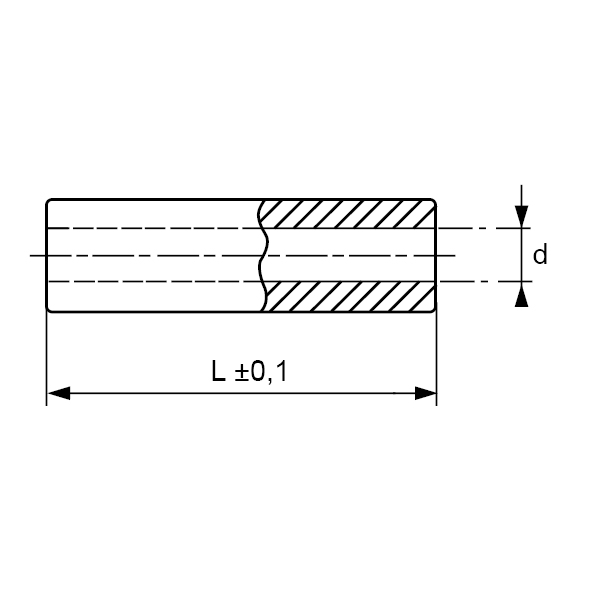

Technische Zeichnungen
Abmessungen in mm
Produktvarianten
Art.-Nr. 101 34 XX Außen-Ø = 4,0mm Innen-Ø = 2,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1013402 | 4,0 | 2,2 | 2,0 | Anfrage | |
| 1013403 | 4,0 | 2,2 | 3,0 | Anfrage | |
| 1013404 | 4,0 | 2,2 | 4,0 | Anfrage | |
| 1013405 | 4,0 | 2,2 | 5,0 | Anfrage | |
| 1013406 | 4,0 | 2,2 | 6,0 | Anfrage | |
| 1013407 | 4,0 | 2,2 | 7,0 | Anfrage | |
| 1013408 | 4,0 | 2,2 | 8,0 | Anfrage | |
| 1013409 | 4,0 | 2,2 | 9,0 | Anfrage | |
| 1013410 | 4,0 | 2,2 | 10,0 | Anfrage | |
| 1013411 | 4,0 | 2,2 | 11,0 | Anfrage | |
| 1013412 | 4,0 | 2,2 | 12,0 | Anfrage | |
| 1013413 | 4,0 | 2,2 | 13,0 | Anfrage | |
| 1013414 | 4,0 | 2,2 | 14,0 | Anfrage | |
| 1013415 | 4,0 | 2,2 | 15,0 | Anfrage | |
| 1013416 | 4,0 | 2,2 | 16,0 | Anfrage | |
| 1013417 | 4,0 | 2,2 | 17,0 | Anfrage | |
| 1013418 | 4,0 | 2,2 | 18,0 | Anfrage | |
| 1013419 | 4,0 | 2,2 | 19,0 | Anfrage | |
| 1013420 | 4,0 | 2,2 | 20,0 | Anfrage | |
| 1013421 | 4,0 | 2,2 | 21,0 | Anfrage | |
| 1013422 | 4,0 | 2,2 | 22,0 | Anfrage | |
| 1013423 | 4,0 | 2,2 | 23,0 | Anfrage | |
| 1013424 | 4,0 | 2,2 | 24,0 | Anfrage | |
| 1013425 | 4,0 | 2,2 | 25,0 | Anfrage | |
| 1013426 | 4,0 | 2,2 | 26,0 | Anfrage | |
| 1013427 | 4,0 | 2,2 | 27,0 | Anfrage | |
| 1013428 | 4,0 | 2,2 | 28,0 | Anfrage | |
| 1013429 | 4,0 | 2,2 | 29,0 | Anfrage | |
| 1013430 | 4,0 | 2,2 | 30,0 | Anfrage | |
| 1013431 | 4,0 | 2,2 | 31,0 | Anfrage | |
| 1013432 | 4,0 | 2,2 | 32,0 | Anfrage | |
| 1013433 | 4,0 | 2,2 | 33,0 | Anfrage | |
| 1013434 | 4,0 | 2,2 | 34,0 | Anfrage | |
| 1013435 | 4,0 | 2,2 | 35,0 | Anfrage | |
| 1013436 | 4,0 | 2,2 | 36,0 | Anfrage | |
| 1013437 | 4,0 | 2,2 | 37,0 | Anfrage | |
| 1013438 | 4,0 | 2,2 | 38,0 | Anfrage | |
| 1013439 | 4,0 | 2,2 | 39,0 | Anfrage | |
| 1013440 | 4,0 | 2,2 | 40,0 | Anfrage | |
| 1013441 | 4,0 | 2,2 | 41,0 | Anfrage | |
| 1013442 | 4,0 | 2,2 | 42,0 | Anfrage | |
| 1013443 | 4,0 | 2,2 | 43,0 | Anfrage | |
| 1013444 | 4,0 | 2,2 | 44,0 | Anfrage | |
| 1013445 | 4,0 | 2,2 | 45,0 | Anfrage | |
| 1013446 | 4,0 | 2,2 | 46,0 | Anfrage | |
| 1013447 | 4,0 | 2,2 | 47,0 | Anfrage | |
| 1013448 | 4,0 | 2,2 | 48,0 | Anfrage | |
| 1013449 | 4,0 | 2,2 | 49,0 | Anfrage | |
| 1013450 | 4,0 | 2,2 | 50,0 | Anfrage |
Art.-Nr. 101 38 XX Außen-Ø = 5,0mm Innen-Ø = 2,7mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1013802 | 5,0 | 2,7 | 2,0 | Anfrage | |
| 1013803 | 5,0 | 2,7 | 3,0 | Anfrage | |
| 1013804 | 5,0 | 2,7 | 4,0 | Anfrage | |
| 1013805 | 5,0 | 2,7 | 5,0 | Anfrage | |
| 1013806 | 5,0 | 2,7 | 6,0 | Anfrage | |
| 1013807 | 5,0 | 2,7 | 7,0 | Anfrage | |
| 1013808 | 5,0 | 2,7 | 8,0 | Anfrage | |
| 1013809 | 5,0 | 2,7 | 9,0 | Anfrage | |
| 1013810 | 5,0 | 2,7 | 10,0 | Anfrage | |
| 1013811 | 5,0 | 2,7 | 11,0 | Anfrage | |
| 1013812 | 5,0 | 2,7 | 12,0 | Anfrage | |
| 1013813 | 5,0 | 2,7 | 13,0 | Anfrage | |
| 1013814 | 5,0 | 2,7 | 14,0 | Anfrage | |
| 1013815 | 5,0 | 2,7 | 15,0 | Anfrage | |
| 1013816 | 5,0 | 2,7 | 16,0 | Anfrage | |
| 1013817 | 5,0 | 2,7 | 17,0 | Anfrage | |
| 1013818 | 5,0 | 2,7 | 18,0 | Anfrage | |
| 1013819 | 5,0 | 2,7 | 19,0 | Anfrage | |
| 1013820 | 5,0 | 2,7 | 20,0 | Anfrage | |
| 1013821 | 5,0 | 2,7 | 21,0 | Anfrage | |
| 1013822 | 5,0 | 2,7 | 22,0 | Anfrage | |
| 1013823 | 5,0 | 2,7 | 23,0 | Anfrage | |
| 1013824 | 5,0 | 2,7 | 24,0 | Anfrage | |
| 1013825 | 5,0 | 2,7 | 25,0 | Anfrage | |
| 1013826 | 5,0 | 2,7 | 26,0 | Anfrage | |
| 1013827 | 5,0 | 2,7 | 27,0 | Anfrage | |
| 1013828 | 5,0 | 2,7 | 28,0 | Anfrage | |
| 1013829 | 5,0 | 2,7 | 29,0 | Anfrage | |
| 1013830 | 5,0 | 2,7 | 30,0 | Anfrage | |
| 1013831 | 5,0 | 2,7 | 31,0 | Anfrage | |
| 1013832 | 5,0 | 2,7 | 32,0 | Anfrage | |
| 1013833 | 5,0 | 2,7 | 33,0 | Anfrage | |
| 1013834 | 5,0 | 2,7 | 34,0 | Anfrage | |
| 1013835 | 5,0 | 2,7 | 35,0 | Anfrage | |
| 1013836 | 5,0 | 2,7 | 36,0 | Anfrage | |
| 1013837 | 5,0 | 2,7 | 37,0 | Anfrage | |
| 1013838 | 5,0 | 2,7 | 38,0 | Anfrage | |
| 1013839 | 5,0 | 2,7 | 39,0 | Anfrage | |
| 1013840 | 5,0 | 2,7 | 40,0 | Anfrage | |
| 1013841 | 5,0 | 2,7 | 41,0 | Anfrage | |
| 1013842 | 5,0 | 2,7 | 42,0 | Anfrage | |
| 1013843 | 5,0 | 2,7 | 43,0 | Anfrage | |
| 1013844 | 5,0 | 2,7 | 44,0 | Anfrage | |
| 1013845 | 5,0 | 2,7 | 45,0 | Anfrage | |
| 1013846 | 5,0 | 2,7 | 46,0 | Anfrage | |
| 1013847 | 5,0 | 2,7 | 47,0 | Anfrage | |
| 1013848 | 5,0 | 2,7 | 48,0 | Anfrage | |
| 1013849 | 5,0 | 2,7 | 49,0 | Anfrage | |
| 1013850 | 5,0 | 2,7 | 50,0 | Anfrage | |
| 1013851 | 5,0 | 2,7 | 51,0 | Anfrage | |
| 1013852 | 5,0 | 2,7 | 52,0 | Anfrage | |
| 1013853 | 5,0 | 2,7 | 53,0 | Anfrage | |
| 1013854 | 5,0 | 2,7 | 54,0 | Anfrage | |
| 1013855 | 5,0 | 2,7 | 55,0 | Anfrage |
Art.-Nr. 101 11 XX Außen-Ø = 5,0mm Innen-Ø = 3,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1011102 | 5,0 | 3,2 | 2,0 | Anfrage | |
| 1011103 | 5,0 | 3,2 | 3,0 | Anfrage | |
| 1011104 | 5,0 | 3,2 | 4,0 | Anfrage | |
| 1011105 | 5,0 | 3,2 | 5,0 | Anfrage | |
| 1011106 | 5,0 | 3,2 | 6,0 | Anfrage | |
| 1011107 | 5,0 | 3,2 | 7,0 | Anfrage | |
| 1011108 | 5,0 | 3,2 | 8,0 | Anfrage | |
| 1011109 | 5,0 | 3,2 | 9,0 | Anfrage | |
| 1011110 | 5,0 | 3,2 | 10,0 | Anfrage | |
| 1011111 | 5,0 | 3,2 | 11,0 | Anfrage | |
| 1011112 | 5,0 | 3,2 | 12,0 | Anfrage | |
| 1011113 | 5,0 | 3,2 | 13,0 | Anfrage | |
| 1011114 | 5,0 | 3,2 | 14,0 | Anfrage | |
| 1011115 | 5,0 | 3,2 | 15,0 | Anfrage | |
| 1011116 | 5,0 | 3,2 | 16,0 | Anfrage | |
| 1011117 | 5,0 | 3,2 | 17,0 | Anfrage | |
| 1011118 | 5,0 | 3,2 | 18,0 | Anfrage | |
| 1011119 | 5,0 | 3,2 | 19,0 | Anfrage | |
| 1011120 | 5,0 | 3,2 | 20,0 | Anfrage | |
| 1011121 | 5,0 | 3,2 | 21,0 | Anfrage | |
| 1011122 | 5,0 | 3,2 | 22,0 | Anfrage | |
| 1011123 | 5,0 | 3,2 | 23,0 | Anfrage | |
| 1011124 | 5,0 | 3,2 | 24,0 | Anfrage | |
| 1011125 | 5,0 | 3,2 | 25,0 | Anfrage | |
| 1011126 | 5,0 | 3,2 | 26,0 | Anfrage | |
| 1011127 | 5,0 | 3,2 | 27,0 | Anfrage | |
| 1011128 | 5,0 | 3,2 | 28,0 | Anfrage | |
| 1011129 | 5,0 | 3,2 | 29,0 | Anfrage | |
| 1011130 | 5,0 | 3,2 | 30,0 | Anfrage | |
| 1011131 | 5,0 | 3,2 | 31,0 | Anfrage | |
| 1011132 | 5,0 | 3,2 | 32,0 | Anfrage | |
| 1011133 | 5,0 | 3,2 | 33,0 | Anfrage | |
| 1011134 | 5,0 | 3,2 | 34,0 | Anfrage | |
| 1011135 | 5,0 | 3,2 | 35,0 | Anfrage | |
| 1011136 | 5,0 | 3,2 | 36,0 | Anfrage | |
| 1011137 | 5,0 | 3,2 | 37,0 | Anfrage | |
| 1011138 | 5,0 | 3,2 | 38,0 | Anfrage | |
| 1011139 | 5,0 | 3,2 | 39,0 | Anfrage | |
| 1011140 | 5,0 | 3,2 | 40,0 | Anfrage | |
| 1011141 | 5,0 | 3,2 | 41,0 | Anfrage | |
| 1011142 | 5,0 | 3,2 | 42,0 | Anfrage | |
| 1011143 | 5,0 | 3,2 | 43,0 | Anfrage | |
| 1011144 | 5,0 | 3,2 | 44,0 | Anfrage | |
| 1011145 | 5,0 | 3,2 | 45,0 | Anfrage | |
| 1011146 | 5,0 | 3,2 | 46,0 | Anfrage | |
| 1011147 | 5,0 | 3,2 | 47,0 | Anfrage | |
| 1011148 | 5,0 | 3,2 | 48,0 | Anfrage | |
| 1011149 | 5,0 | 3,2 | 49,0 | Anfrage | |
| 1011150 | 5,0 | 3,2 | 50,0 | Anfrage |
Art.-Nr. 101 42 XX Außen-Ø = 6,0mm Innen-Ø = 2,7mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1014202 | 6,0 | 2,7 | 2,0 | Anfrage | |
| 1014203 | 6,0 | 2,7 | 3,0 | Anfrage | |
| 1014204 | 6,0 | 2,7 | 4,0 | Anfrage | |
| 1014205 | 6,0 | 2,7 | 5,0 | Anfrage | |
| 1014206 | 6,0 | 2,7 | 6,0 | Anfrage | |
| 1014207 | 6,0 | 2,7 | 7,0 | Anfrage | |
| 1014208 | 6,0 | 2,7 | 8,0 | Anfrage | |
| 1014209 | 6,0 | 2,7 | 9,0 | Anfrage | |
| 1014210 | 6,0 | 2,7 | 10,0 | Anfrage | |
| 1014211 | 6,0 | 2,7 | 11,0 | Anfrage | |
| 1014212 | 6,0 | 2,7 | 12,0 | Anfrage | |
| 1014213 | 6,0 | 2,7 | 13,0 | Anfrage | |
| 1014214 | 6,0 | 2,7 | 14,0 | Anfrage | |
| 1014215 | 6,0 | 2,7 | 15,0 | Anfrage | |
| 1014216 | 6,0 | 2,7 | 16,0 | Anfrage | |
| 1014217 | 6,0 | 2,7 | 17,0 | Anfrage | |
| 1014218 | 6,0 | 2,7 | 18,0 | Anfrage | |
| 1014219 | 6,0 | 2,7 | 19,0 | Anfrage | |
| 1014220 | 6,0 | 2,7 | 20,0 | Anfrage | |
| 1014221 | 6,0 | 2,7 | 21,0 | Anfrage | |
| 1014222 | 6,0 | 2,7 | 22,0 | Anfrage | |
| 1014223 | 6,0 | 2,7 | 23,0 | Anfrage | |
| 1014224 | 6,0 | 2,7 | 24,0 | Anfrage | |
| 1014225 | 6,0 | 2,7 | 25,0 | Anfrage | |
| 1014226 | 6,0 | 2,7 | 26,0 | Anfrage | |
| 1014227 | 6,0 | 2,7 | 27,0 | Anfrage | |
| 1014228 | 6,0 | 2,7 | 28,0 | Anfrage | |
| 1014229 | 6,0 | 2,7 | 29,0 | Anfrage | |
| 1014230 | 6,0 | 2,7 | 30,0 | Anfrage | |
| 1014231 | 6,0 | 2,7 | 31,0 | Anfrage | |
| 1014232 | 6,0 | 2,7 | 32,0 | Anfrage | |
| 1014233 | 6,0 | 2,7 | 33,0 | Anfrage | |
| 1014234 | 6,0 | 2,7 | 34,0 | Anfrage | |
| 1014235 | 6,0 | 2,7 | 35,0 | Anfrage | |
| 1014236 | 6,0 | 2,7 | 36,0 | Anfrage | |
| 1014237 | 6,0 | 2,7 | 37,0 | Anfrage | |
| 1014238 | 6,0 | 2,7 | 38,0 | Anfrage | |
| 1014239 | 6,0 | 2,7 | 39,0 | Anfrage | |
| 1014240 | 6,0 | 2,7 | 40,0 | Anfrage | |
| 1014241 | 6,0 | 2,7 | 41,0 | Anfrage | |
| 1014242 | 6,0 | 2,7 | 42,0 | Anfrage | |
| 1014243 | 6,0 | 2,7 | 43,0 | Anfrage | |
| 1014244 | 6,0 | 2,7 | 44,0 | Anfrage | |
| 1014245 | 6,0 | 2,7 | 45,0 | Anfrage | |
| 1014246 | 6,0 | 2,7 | 46,0 | Anfrage | |
| 1014247 | 6,0 | 2,7 | 47,0 | Anfrage | |
| 1014248 | 6,0 | 2,7 | 48,0 | Anfrage | |
| 1014249 | 6,0 | 2,7 | 49,0 | Anfrage | |
| 1014250 | 6,0 | 2,7 | 50,0 | Anfrage | |
| 1014251 | 6,0 | 2,7 | 51,0 | Anfrage | |
| 1014252 | 6,0 | 2,7 | 52,0 | Anfrage | |
| 1014253 | 6,0 | 2,7 | 53,0 | Anfrage | |
| 1014254 | 6,0 | 2,7 | 54,0 | Anfrage | |
| 1014255 | 6,0 | 2,7 | 55,0 | Anfrage |
Art.-Nr. 101 10 XX Außen-Ø = 6,0mm Innen-Ø = 3,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1011002 | 6,0 | 3,2 | 2,0 | Anfrage | |
| 1011003 | 6,0 | 3,2 | 3,0 | Anfrage | |
| 1011004 | 6,0 | 3,2 | 4,0 | Anfrage | |
| 1011005 | 6,0 | 3,2 | 5,0 | Anfrage | |
| 1011006 | 6,0 | 3,2 | 6,0 | Anfrage | |
| 1011007 | 6,0 | 3,2 | 7,0 | Anfrage | |
| 1011008 | 6,0 | 3,2 | 8,0 | Anfrage | |
| 1011009 | 6,0 | 3,2 | 9,0 | Anfrage | |
| 1011010 | 6,0 | 3,2 | 10,0 | Anfrage | |
| 1011011 | 6,0 | 3,2 | 11,0 | Anfrage | |
| 1011012 | 6,0 | 3,2 | 12,0 | Anfrage | |
| 1011013 | 6,0 | 3,2 | 13,0 | Anfrage | |
| 1011014 | 6,0 | 3,2 | 14,0 | Anfrage | |
| 1011015 | 6,0 | 3,2 | 15,0 | Anfrage | |
| 1011016 | 6,0 | 3,2 | 16,0 | Anfrage | |
| 1011017 | 6,0 | 3,2 | 17,0 | Anfrage | |
| 1011018 | 6,0 | 3,2 | 18,0 | Anfrage | |
| 1011019 | 6,0 | 3,2 | 19,0 | Anfrage | |
| 1011020 | 6,0 | 3,2 | 20,0 | Anfrage | |
| 1011021 | 6,0 | 3,2 | 21,0 | Anfrage | |
| 1011022 | 6,0 | 3,2 | 22,0 | Anfrage | |
| 1011023 | 6,0 | 3,2 | 23,0 | Anfrage | |
| 1011024 | 6,0 | 3,2 | 24,0 | Anfrage | |
| 1011025 | 6,0 | 3,2 | 25,0 | Anfrage | |
| 1011026 | 6,0 | 3,2 | 26,0 | Anfrage | |
| 1011027 | 6,0 | 3,2 | 27,0 | Anfrage | |
| 1011028 | 6,0 | 3,2 | 28,0 | Anfrage | |
| 1011029 | 6,0 | 3,2 | 29,0 | Anfrage | |
| 1011030 | 6,0 | 3,2 | 30,0 | Anfrage | |
| 1011031 | 6,0 | 3,2 | 31,0 | Anfrage | |
| 1011032 | 6,0 | 3,2 | 32,0 | Anfrage | |
| 1011033 | 6,0 | 3,2 | 33,0 | Anfrage | |
| 1011034 | 6,0 | 3,2 | 34,0 | Anfrage | |
| 1011035 | 6,0 | 3,2 | 35,0 | Anfrage | |
| 1011036 | 6,0 | 3,2 | 36,0 | Anfrage | |
| 1011037 | 6,0 | 3,2 | 37,0 | Anfrage | |
| 1011038 | 6,0 | 3,2 | 38,0 | Anfrage | |
| 1011039 | 6,0 | 3,2 | 39,0 | Anfrage | |
| 1011040 | 6,0 | 3,2 | 40,0 | Anfrage | |
| 1011041 | 6,0 | 3,2 | 41,0 | Anfrage | |
| 1011042 | 6,0 | 3,2 | 42,0 | Anfrage | |
| 1011043 | 6,0 | 3,2 | 43,0 | Anfrage | |
| 1011044 | 6,0 | 3,2 | 44,0 | Anfrage | |
| 1011045 | 6,0 | 3,2 | 45,0 | Anfrage | |
| 1011046 | 6,0 | 3,2 | 46,0 | Anfrage | |
| 1011047 | 6,0 | 3,2 | 47,0 | Anfrage | |
| 1011048 | 6,0 | 3,2 | 48,0 | Anfrage | |
| 1011049 | 6,0 | 3,2 | 49,0 | Anfrage | |
| 1011050 | 6,0 | 3,2 | 50,0 | Anfrage | |
| 1011051 | 6,0 | 3,2 | 51,0 | Anfrage | |
| 1011052 | 6,0 | 3,2 | 52,0 | Anfrage | |
| 1011053 | 6,0 | 3,2 | 53,0 | Anfrage | |
| 1011054 | 6,0 | 3,2 | 54,0 | Anfrage | |
| 1011055 | 6,0 | 3,2 | 55,0 | Anfrage | |
| 1011056 | 6,0 | 3,2 | 56,0 | Anfrage | |
| 1011057 | 6,0 | 3,2 | 57,0 | Anfrage | |
| 1011058 | 6,0 | 3,2 | 58,0 | Anfrage | |
| 1011059 | 6,0 | 3,2 | 59,0 | Anfrage | |
| 1011060 | 6,0 | 3,2 | 60,0 | Anfrage |
Art.-Nr. 101 19 XX Außen-Ø = 6,0mm Innen-Ø = 3,4mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1011902 | 6,0 | 3,4 | 2,0 | Anfrage | |
| 1011903 | 6,0 | 3,4 | 3,0 | Anfrage | |
| 1011904 | 6,0 | 3,4 | 4,0 | Anfrage | |
| 1011905 | 6,0 | 3,4 | 5,0 | Anfrage | |
| 1011906 | 6,0 | 3,4 | 6,0 | Anfrage | |
| 1011907 | 6,0 | 3,4 | 7,0 | Anfrage | |
| 1011908 | 6,0 | 3,4 | 8,0 | Anfrage | |
| 1011909 | 6,0 | 3,4 | 9,0 | Anfrage | |
| 1011910 | 6,0 | 3,4 | 10,0 | Anfrage | |
| 1011911 | 6,0 | 3,4 | 11,0 | Anfrage | |
| 1011912 | 6,0 | 3,4 | 12,0 | Anfrage | |
| 1011913 | 6,0 | 3,4 | 13,0 | Anfrage | |
| 1011914 | 6,0 | 3,4 | 14,0 | Anfrage | |
| 1011915 | 6,0 | 3,4 | 15,0 | Anfrage | |
| 1011916 | 6,0 | 3,4 | 16,0 | Anfrage | |
| 1011917 | 6,0 | 3,4 | 17,0 | Anfrage | |
| 1011918 | 6,0 | 3,4 | 18,0 | Anfrage | |
| 1011919 | 6,0 | 3,4 | 19,0 | Anfrage | |
| 1011920 | 6,0 | 3,4 | 20,0 | Anfrage | |
| 1011921 | 6,0 | 3,4 | 21,0 | Anfrage | |
| 1011922 | 6,0 | 3,4 | 22,0 | Anfrage | |
| 1011923 | 6,0 | 3,4 | 23,0 | Anfrage | |
| 1011924 | 6,0 | 3,4 | 24,0 | Anfrage | |
| 1011925 | 6,0 | 3,4 | 25,0 | Anfrage | |
| 1011926 | 6,0 | 3,4 | 26,0 | Anfrage | |
| 1011927 | 6,0 | 3,4 | 27,0 | Anfrage | |
| 1011928 | 6,0 | 3,4 | 28,0 | Anfrage | |
| 1011929 | 6,0 | 3,4 | 29,0 | Anfrage | |
| 1011930 | 6,0 | 3,4 | 30,0 | Anfrage | |
| 1011931 | 6,0 | 3,4 | 31,0 | Anfrage | |
| 1011932 | 6,0 | 3,4 | 32,0 | Anfrage | |
| 1011933 | 6,0 | 3,4 | 33,0 | Anfrage | |
| 1011934 | 6,0 | 3,4 | 34,0 | Anfrage | |
| 1011935 | 6,0 | 3,4 | 35,0 | Anfrage | |
| 1011936 | 6,0 | 3,4 | 36,0 | Anfrage | |
| 1011937 | 6,0 | 3,4 | 37,0 | Anfrage | |
| 1011938 | 6,0 | 3,4 | 38,0 | Anfrage | |
| 1011939 | 6,0 | 3,4 | 39,0 | Anfrage | |
| 1011940 | 6,0 | 3,4 | 40,0 | Anfrage | |
| 1011941 | 6,0 | 3,4 | 41,0 | Anfrage | |
| 1011942 | 6,0 | 3,4 | 42,0 | Anfrage | |
| 1011943 | 6,0 | 3,4 | 43,0 | Anfrage | |
| 1011944 | 6,0 | 3,4 | 44,0 | Anfrage | |
| 1011945 | 6,0 | 3,4 | 45,0 | Anfrage | |
| 1011946 | 6,0 | 3,4 | 46,0 | Anfrage | |
| 1011947 | 6,0 | 3,4 | 47,0 | Anfrage | |
| 1011948 | 6,0 | 3,4 | 48,0 | Anfrage | |
| 1011949 | 6,0 | 3,4 | 49,0 | Anfrage | |
| 1011950 | 6,0 | 3,4 | 50,0 | Anfrage | |
| 1011951 | 6,0 | 3,4 | 51,0 | Anfrage | |
| 1011952 | 6,0 | 3,4 | 52,0 | Anfrage | |
| 1011953 | 6,0 | 3,4 | 53,0 | Anfrage | |
| 1011954 | 6,0 | 3,4 | 54,0 | Anfrage | |
| 1011955 | 6,0 | 3,4 | 55,0 | Anfrage | |
| 1011956 | 6,0 | 3,4 | 56,0 | Anfrage | |
| 1011957 | 6,0 | 3,4 | 57,0 | Anfrage | |
| 1011958 | 6,0 | 3,4 | 58,0 | Anfrage | |
| 1011959 | 6,0 | 3,4 | 59,0 | Anfrage | |
| 1011960 | 6,0 | 3,4 | 60,0 | Anfrage |
Art.-Nr. 101 47 XX Außen-Ø = 7,0mm Innen-Ø = 3,4mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1014702 | 7,0 | 3,4 | 2,0 | Anfrage | |
| 1014703 | 7,0 | 3,4 | 3,0 | Anfrage | |
| 1014704 | 7,0 | 3,4 | 4,0 | Anfrage | |
| 1014705 | 7,0 | 3,4 | 5,0 | Anfrage | |
| 1014706 | 7,0 | 3,4 | 6,0 | Anfrage | |
| 1014707 | 7,0 | 3,4 | 7,0 | Anfrage | |
| 1014708 | 7,0 | 3,4 | 8,0 | Anfrage | |
| 1014709 | 7,0 | 3,4 | 9,0 | Anfrage | |
| 1014710 | 7,0 | 3,4 | 10,0 | Anfrage | |
| 1014711 | 7,0 | 3,4 | 11,0 | Anfrage | |
| 1014712 | 7,0 | 3,4 | 12,0 | Anfrage | |
| 1014713 | 7,0 | 3,4 | 13,0 | Anfrage | |
| 1014714 | 7,0 | 3,4 | 14,0 | Anfrage | |
| 1014715 | 7,0 | 3,4 | 15,0 | Anfrage | |
| 1014716 | 7,0 | 3,4 | 16,0 | Anfrage | |
| 1014717 | 7,0 | 3,4 | 17,0 | Anfrage | |
| 1014718 | 7,0 | 3,4 | 18,0 | Anfrage | |
| 1014719 | 7,0 | 3,4 | 19,0 | Anfrage | |
| 1014720 | 7,0 | 3,4 | 20,0 | Anfrage | |
| 1014721 | 7,0 | 3,4 | 21,0 | Anfrage | |
| 1014722 | 7,0 | 3,4 | 22,0 | Anfrage | |
| 1014723 | 7,0 | 3,4 | 23,0 | Anfrage | |
| 1014724 | 7,0 | 3,4 | 24,0 | Anfrage | |
| 1014725 | 7,0 | 3,4 | 25,0 | Anfrage | |
| 1014726 | 7,0 | 3,4 | 26,0 | Anfrage | |
| 1014727 | 7,0 | 3,4 | 27,0 | Anfrage | |
| 1014728 | 7,0 | 3,4 | 28,0 | Anfrage | |
| 1014729 | 7,0 | 3,4 | 29,0 | Anfrage | |
| 1014730 | 7,0 | 3,4 | 30,0 | Anfrage | |
| 1014731 | 7,0 | 3,4 | 31,0 | Anfrage | |
| 1014732 | 7,0 | 3,4 | 32,0 | Anfrage | |
| 1014733 | 7,0 | 3,4 | 33,0 | Anfrage | |
| 1014734 | 7,0 | 3,4 | 34,0 | Anfrage | |
| 1014735 | 7,0 | 3,4 | 35,0 | Anfrage | |
| 1014736 | 7,0 | 3,4 | 36,0 | Anfrage | |
| 1014737 | 7,0 | 3,4 | 37,0 | Anfrage | |
| 1014738 | 7,0 | 3,4 | 38,0 | Anfrage | |
| 1014739 | 7,0 | 3,4 | 39,0 | Anfrage | |
| 1014740 | 7,0 | 3,4 | 40,0 | Anfrage | |
| 1014741 | 7,0 | 3,4 | 41,0 | Anfrage | |
| 1014742 | 7,0 | 3,4 | 42,0 | Anfrage | |
| 1014743 | 7,0 | 3,4 | 43,0 | Anfrage | |
| 1014744 | 7,0 | 3,4 | 44,0 | Anfrage | |
| 1014745 | 7,0 | 3,4 | 45,0 | Anfrage | |
| 1014746 | 7,0 | 3,4 | 46,0 | Anfrage | |
| 1014747 | 7,0 | 3,4 | 47,0 | Anfrage | |
| 1014748 | 7,0 | 3,4 | 48,0 | Anfrage | |
| 1014749 | 7,0 | 3,4 | 49,0 | Anfrage | |
| 1014750 | 7,0 | 3,4 | 50,0 | Anfrage | |
| 1014751 | 7,0 | 3,4 | 51,0 | Anfrage | |
| 1014752 | 7,0 | 3,4 | 52,0 | Anfrage | |
| 1014753 | 7,0 | 3,4 | 53,0 | Anfrage | |
| 1014754 | 7,0 | 3,4 | 54,0 | Anfrage | |
| 1014755 | 7,0 | 3,4 | 55,0 | Anfrage | |
| 1014756 | 7,0 | 3,4 | 56,0 | Anfrage | |
| 1014757 | 7,0 | 3,4 | 57,0 | Anfrage | |
| 1014758 | 7,0 | 3,4 | 58,0 | Anfrage | |
| 1014759 | 7,0 | 3,4 | 59,0 | Anfrage | |
| 1014760 | 7,0 | 3,4 | 60,0 | Anfrage |
Art.-Nr. 101 54 XX Außen-Ø = 7,0mm Innen-Ø = 5,0mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1015402 | 7,0 | 5,0 | 2,0 | Anfrage | |
| 1015403 | 7,0 | 5,0 | 3,0 | Anfrage | |
| 1015404 | 7,0 | 5,0 | 4,0 | Anfrage | |
| 1015405 | 7,0 | 5,0 | 5,0 | Anfrage | |
| 1015406 | 7,0 | 5,0 | 6,0 | Anfrage | |
| 1015407 | 7,0 | 5,0 | 7,0 | Anfrage | |
| 1015408 | 7,0 | 5,0 | 8,0 | Anfrage | |
| 1015409 | 7,0 | 5,0 | 9,0 | Anfrage | |
| 1015410 | 7,0 | 5,0 | 10,0 | Anfrage | |
| 1015411 | 7,0 | 5,0 | 11,0 | Anfrage | |
| 1015412 | 7,0 | 5,0 | 12,0 | Anfrage | |
| 1015413 | 7,0 | 5,0 | 13,0 | Anfrage | |
| 1015414 | 7,0 | 5,0 | 14,0 | Anfrage | |
| 1015415 | 7,0 | 5,0 | 15,0 | Anfrage | |
| 1015416 | 7,0 | 5,0 | 16,0 | Anfrage | |
| 1015417 | 7,0 | 5,0 | 17,0 | Anfrage | |
| 1015418 | 7,0 | 5,0 | 18,0 | Anfrage | |
| 1015419 | 7,0 | 5,0 | 19,0 | Anfrage | |
| 1015420 | 7,0 | 5,0 | 20,0 | Anfrage | |
| 1015421 | 7,0 | 5,0 | 21,0 | Anfrage | |
| 1015422 | 7,0 | 5,0 | 22,0 | Anfrage | |
| 1015423 | 7,0 | 5,0 | 23,0 | Anfrage | |
| 1015424 | 7,0 | 5,0 | 24,0 | Anfrage | |
| 1015425 | 7,0 | 5,0 | 25,0 | Anfrage | |
| 1015426 | 7,0 | 5,0 | 26,0 | Anfrage | |
| 1015427 | 7,0 | 5,0 | 27,0 | Anfrage | |
| 1015428 | 7,0 | 5,0 | 28,0 | Anfrage | |
| 1015429 | 7,0 | 5,0 | 29,0 | Anfrage | |
| 1015430 | 7,0 | 5,0 | 30,0 | Anfrage | |
| 1015431 | 7,0 | 5,0 | 31,0 | Anfrage | |
| 1015432 | 7,0 | 5,0 | 32,0 | Anfrage | |
| 1015433 | 7,0 | 5,0 | 33,0 | Anfrage | |
| 1015434 | 7,0 | 5,0 | 34,0 | Anfrage | |
| 1015435 | 7,0 | 5,0 | 35,0 | Anfrage | |
| 1015436 | 7,0 | 5,0 | 36,0 | Anfrage | |
| 1015437 | 7,0 | 5,0 | 37,0 | Anfrage | |
| 1015438 | 7,0 | 5,0 | 38,0 | Anfrage | |
| 1015439 | 7,0 | 5,0 | 39,0 | Anfrage | |
| 1015440 | 7,0 | 5,0 | 40,0 | Anfrage | |
| 1015441 | 7,0 | 5,0 | 41,0 | Anfrage | |
| 1015442 | 7,0 | 5,0 | 42,0 | Anfrage | |
| 1015443 | 7,0 | 5,0 | 43,0 | Anfrage | |
| 1015444 | 7,0 | 5,0 | 44,0 | Anfrage | |
| 1015445 | 7,0 | 5,0 | 45,0 | Anfrage | |
| 1015446 | 7,0 | 5,0 | 46,0 | Anfrage | |
| 1015447 | 7,0 | 5,0 | 47,0 | Anfrage | |
| 1015448 | 7,0 | 5,0 | 48,0 | Anfrage | |
| 1015449 | 7,0 | 5,0 | 49,0 | Anfrage | |
| 1015450 | 7,0 | 5,0 | 50,0 | Anfrage | |
| 1015451 | 7,0 | 5,0 | 51,0 | Anfrage | |
| 1015452 | 7,0 | 5,0 | 52,0 | Anfrage | |
| 1015453 | 7,0 | 5,0 | 53,0 | Anfrage |
Art.-Nr. 101 50 XX Außen-Ø = 8,0mm Innen-Ø = 3,5mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1015002 | 8,0 | 3,5 | 2,0 | Anfrage | |
| 1015003 | 8,0 | 3,5 | 3,0 | Anfrage | |
| 1015004 | 8,0 | 3,5 | 4,0 | Anfrage | |
| 1015005 | 8,0 | 3,5 | 5,0 | Anfrage | |
| 1015006 | 8,0 | 3,5 | 6,0 | Anfrage | |
| 1015007 | 8,0 | 3,5 | 7,0 | Anfrage | |
| 1015008 | 8,0 | 3,5 | 8,0 | Anfrage | |
| 1015009 | 8,0 | 3,5 | 9,0 | Anfrage | |
| 1015010 | 8,0 | 3,5 | 10,0 | Anfrage | |
| 1015011 | 8,0 | 3,5 | 11,0 | Anfrage | |
| 1015012 | 8,0 | 3,5 | 12,0 | Anfrage | |
| 1015013 | 8,0 | 3,5 | 13,0 | Anfrage | |
| 1015014 | 8,0 | 3,5 | 14,0 | Anfrage | |
| 1015015 | 8,0 | 3,5 | 15,0 | Anfrage | |
| 1015016 | 8,0 | 3,5 | 16,0 | Anfrage | |
| 1015017 | 8,0 | 3,5 | 17,0 | Anfrage | |
| 1015018 | 8,0 | 3,5 | 18,0 | Anfrage | |
| 1015019 | 8,0 | 3,5 | 19,0 | Anfrage | |
| 1015020 | 8,0 | 3,5 | 20,0 | Anfrage | |
| 1015021 | 8,0 | 3,5 | 21,0 | Anfrage | |
| 1015022 | 8,0 | 3,5 | 22,0 | Anfrage | |
| 1015023 | 8,0 | 3,5 | 23,0 | Anfrage | |
| 1015024 | 8,0 | 3,5 | 24,0 | Anfrage | |
| 1015025 | 8,0 | 3,5 | 25,0 | Anfrage | |
| 1015026 | 8,0 | 3,5 | 26,0 | Anfrage | |
| 1015027 | 8,0 | 3,5 | 27,0 | Anfrage | |
| 1015028 | 8,0 | 3,5 | 28,0 | Anfrage | |
| 1015029 | 8,0 | 3,5 | 29,0 | Anfrage | |
| 1015030 | 8,0 | 3,5 | 30,0 | Anfrage | |
| 1015031 | 8,0 | 3,5 | 31,0 | Anfrage | |
| 1015032 | 8,0 | 3,5 | 32,0 | Anfrage | |
| 1015033 | 8,0 | 3,5 | 33,0 | Anfrage | |
| 1015034 | 8,0 | 3,5 | 34,0 | Anfrage | |
| 1015035 | 8,0 | 3,5 | 35,0 | Anfrage | |
| 1015036 | 8,0 | 3,5 | 36,0 | Anfrage | |
| 1015037 | 8,0 | 3,5 | 37,0 | Anfrage | |
| 1015038 | 8,0 | 3,5 | 38,0 | Anfrage | |
| 1015039 | 8,0 | 3,5 | 39,0 | Anfrage | |
| 1015040 | 8,0 | 3,5 | 40,0 | Anfrage | |
| 1015041 | 8,0 | 3,5 | 41,0 | Anfrage | |
| 1015042 | 8,0 | 3,5 | 42,0 | Anfrage | |
| 1015043 | 8,0 | 3,5 | 43,0 | Anfrage | |
| 1015044 | 8,0 | 3,5 | 44,0 | Anfrage | |
| 1015045 | 8,0 | 3,5 | 45,0 | Anfrage | |
| 1015046 | 8,0 | 3,5 | 46,0 | Anfrage | |
| 1015047 | 8,0 | 3,5 | 47,0 | Anfrage | |
| 1015048 | 8,0 | 3,5 | 48,0 | Anfrage | |
| 1015049 | 8,0 | 3,5 | 49,0 | Anfrage | |
| 1015050 | 8,0 | 3,5 | 50,0 | Anfrage |
Art.-Nr. 101 18 XX Außen-Ø = 8,0mm Innen-Ø = 4,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1011802 | 8,0 | 4,2 | 2,0 | Anfrage | |
| 1011803 | 8,0 | 4,2 | 3,0 | Anfrage | |
| 1011804 | 8,0 | 4,2 | 4,0 | Anfrage | |
| 1011805 | 8,0 | 4,2 | 5,0 | Anfrage | |
| 1011806 | 8,0 | 4,2 | 6,0 | Anfrage | |
| 1011807 | 8,0 | 4,2 | 7,0 | Anfrage | |
| 1011808 | 8,0 | 4,2 | 8,0 | Anfrage | |
| 1011809 | 8,0 | 4,2 | 9,0 | Anfrage | |
| 1011810 | 8,0 | 4,2 | 10,0 | Anfrage | |
| 1011811 | 8,0 | 4,2 | 11,0 | Anfrage | |
| 1011812 | 8,0 | 4,2 | 12,0 | Anfrage | |
| 1011813 | 8,0 | 4,2 | 13,0 | Anfrage | |
| 1011814 | 8,0 | 4,2 | 14,0 | Anfrage | |
| 1011815 | 8,0 | 4,2 | 15,0 | Anfrage | |
| 1011816 | 8,0 | 4,2 | 16,0 | Anfrage | |
| 1011817 | 8,0 | 4,2 | 17,0 | Anfrage | |
| 1011818 | 8,0 | 4,2 | 18,0 | Anfrage | |
| 1011819 | 8,0 | 4,2 | 19,0 | Anfrage | |
| 1011820 | 8,0 | 4,2 | 20,0 | Anfrage | |
| 1011821 | 8,0 | 4,2 | 21,0 | Anfrage | |
| 1011822 | 8,0 | 4,2 | 22,0 | Anfrage | |
| 1011823 | 8,0 | 4,2 | 23,0 | Anfrage | |
| 1011824 | 8,0 | 4,2 | 24,0 | Anfrage | |
| 1011825 | 8,0 | 4,2 | 25,0 | Anfrage | |
| 1011826 | 8,0 | 4,2 | 26,0 | Anfrage | |
| 1011827 | 8,0 | 4,2 | 27,0 | Anfrage | |
| 1011828 | 8,0 | 4,2 | 28,0 | Anfrage | |
| 1011829 | 8,0 | 4,2 | 29,0 | Anfrage | |
| 1011830 | 8,0 | 4,2 | 30,0 | Anfrage | |
| 1011831 | 8,0 | 4,2 | 31,0 | Anfrage | |
| 1011832 | 8,0 | 4,2 | 32,0 | Anfrage | |
| 1011833 | 8,0 | 4,2 | 33,0 | Anfrage | |
| 1011834 | 8,0 | 4,2 | 34,0 | Anfrage | |
| 1011835 | 8,0 | 4,2 | 35,0 | Anfrage | |
| 1011836 | 8,0 | 4,2 | 36,0 | Anfrage | |
| 1011837 | 8,0 | 4,2 | 37,0 | Anfrage | |
| 1011838 | 8,0 | 4,2 | 38,0 | Anfrage | |
| 1011839 | 8,0 | 4,2 | 39,0 | Anfrage | |
| 1011840 | 8,0 | 4,2 | 40,0 | Anfrage | |
| 1011841 | 8,0 | 4,2 | 41,0 | Anfrage | |
| 1011842 | 8,0 | 4,2 | 42,0 | Anfrage | |
| 1011843 | 8,0 | 4,2 | 43,0 | Anfrage | |
| 1011844 | 8,0 | 4,2 | 44,0 | Anfrage | |
| 1011845 | 8,0 | 4,2 | 45,0 | Anfrage | |
| 1011846 | 8,0 | 4,2 | 46,0 | Anfrage | |
| 1011847 | 8,0 | 4,2 | 47,0 | Anfrage | |
| 1011848 | 8,0 | 4,2 | 48,0 | Anfrage | |
| 1011849 | 8,0 | 4,2 | 49,0 | Anfrage | |
| 1011850 | 8,0 | 4,2 | 50,0 | Anfrage | |
| 1011851 | 8,0 | 4,2 | 51,0 | Anfrage | |
| 1011852 | 8,0 | 4,2 | 52,0 | Anfrage | |
| 1011853 | 8,0 | 4,2 | 53,0 | Anfrage | |
| 1011854 | 8,0 | 4,2 | 54,0 | Anfrage | |
| 1011855 | 8,0 | 4,2 | 55,0 | Anfrage | |
| 1011856 | 8,0 | 4,2 | 56,0 | Anfrage | |
| 1011857 | 8,0 | 4,2 | 57,0 | Anfrage | |
| 1011858 | 8,0 | 4,2 | 58,0 | Anfrage | |
| 1011859 | 8,0 | 4,2 | 59,0 | Anfrage | |
| 1011860 | 8,0 | 4,2 | 60,0 | Anfrage |
Art.-Nr. 101 68 XX Außen-Ø = 8,0mm Innen-Ø = 5,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1016802 | 8,0 | 5,2 | 2,0 | Anfrage | |
| 1016803 | 8,0 | 5,2 | 3,0 | Anfrage | |
| 1016804 | 8,0 | 5,2 | 4,0 | Anfrage | |
| 1016805 | 8,0 | 5,2 | 5,0 | Anfrage | |
| 1016806 | 8,0 | 5,2 | 6,0 | Anfrage | |
| 1016807 | 8,0 | 5,2 | 7,0 | Anfrage | |
| 1016808 | 8,0 | 5,2 | 8,0 | Anfrage | |
| 1016809 | 8,0 | 5,2 | 9,0 | Anfrage | |
| 1016810 | 8,0 | 5,2 | 10,0 | Anfrage | |
| 1016811 | 8,0 | 5,2 | 11,0 | Anfrage | |
| 1016812 | 8,0 | 5,2 | 12,0 | Anfrage | |
| 1016813 | 8,0 | 5,2 | 13,0 | Anfrage | |
| 1016814 | 8,0 | 5,2 | 14,0 | Anfrage | |
| 1016815 | 8,0 | 5,2 | 15,0 | Anfrage | |
| 1016816 | 8,0 | 5,2 | 16,0 | Anfrage | |
| 1016817 | 8,0 | 5,2 | 17,0 | Anfrage | |
| 1016818 | 8,0 | 5,2 | 18,0 | Anfrage | |
| 1016819 | 8,0 | 5,2 | 19,0 | Anfrage | |
| 1016820 | 8,0 | 5,2 | 20,0 | Anfrage | |
| 1016821 | 8,0 | 5,2 | 21,0 | Anfrage | |
| 1016822 | 8,0 | 5,2 | 22,0 | Anfrage | |
| 1016823 | 8,0 | 5,2 | 23,0 | Anfrage | |
| 1016824 | 8,0 | 5,2 | 24,0 | Anfrage | |
| 1016825 | 8,0 | 5,2 | 25,0 | Anfrage | |
| 1016826 | 8,0 | 5,2 | 26,0 | Anfrage | |
| 1016827 | 8,0 | 5,2 | 27,0 | Anfrage | |
| 1016828 | 8,0 | 5,2 | 28,0 | Anfrage | |
| 1016829 | 8,0 | 5,2 | 29,0 | Anfrage | |
| 1016830 | 8,0 | 5,2 | 30,0 | Anfrage | |
| 1016831 | 8,0 | 5,2 | 31,0 | Anfrage | |
| 1016832 | 8,0 | 5,2 | 32,0 | Anfrage | |
| 1016833 | 8,0 | 5,2 | 33,0 | Anfrage | |
| 1016834 | 8,0 | 5,2 | 34,0 | Anfrage | |
| 1016835 | 8,0 | 5,2 | 35,0 | Anfrage | |
| 1016836 | 8,0 | 5,2 | 36,0 | Anfrage | |
| 1016837 | 8,0 | 5,2 | 37,0 | Anfrage | |
| 1016838 | 8,0 | 5,2 | 38,0 | Anfrage | |
| 1016839 | 8,0 | 5,2 | 39,0 | Anfrage | |
| 1016840 | 8,0 | 5,2 | 40,0 | Anfrage | |
| 1016841 | 8,0 | 5,2 | 41,0 | Anfrage | |
| 1016842 | 8,0 | 5,2 | 42,0 | Anfrage | |
| 1016843 | 8,0 | 5,2 | 43,0 | Anfrage | |
| 1016844 | 8,0 | 5,2 | 44,0 | Anfrage | |
| 1016845 | 8,0 | 5,2 | 45,0 | Anfrage | |
| 1016846 | 8,0 | 5,2 | 46,0 | Anfrage | |
| 1016847 | 8,0 | 5,2 | 47,0 | Anfrage | |
| 1016848 | 8,0 | 5,2 | 48,0 | Anfrage | |
| 1016849 | 8,0 | 5,2 | 49,0 | Anfrage | |
| 1016850 | 8,0 | 5,2 | 50,0 | Anfrage | |
| 1016851 | 8,0 | 5,2 | 51,0 | Anfrage | |
| 1016852 | 8,0 | 5,2 | 52,0 | Anfrage | |
| 1016853 | 8,0 | 5,2 | 53,0 | Anfrage | |
| 1016854 | 8,0 | 5,2 | 54,0 | Anfrage | |
| 1016855 | 8,0 | 5,2 | 55,0 | Anfrage | |
| 1016856 | 8,0 | 5,2 | 56,0 | Anfrage | |
| 1016857 | 8,0 | 5,2 | 57,0 | Anfrage | |
| 1016858 | 8,0 | 5,2 | 58,0 | Anfrage | |
| 1016859 | 8,0 | 5,2 | 59,0 | Anfrage | |
| 1016860 | 8,0 | 5,2 | 60,0 | Anfrage |
Art.-Nr. 101 52 XX Außen-Ø = 10,0mm Innen-Ø = 3,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1015202 | 10,0 | 3,2 | 2,0 | Anfrage | |
| 1015203 | 10,0 | 3,2 | 3,0 | Anfrage | |
| 1015204 | 10,0 | 3,2 | 4,0 | Anfrage | |
| 1015205 | 10,0 | 3,2 | 5,0 | Anfrage | |
| 1015206 | 10,0 | 3,2 | 6,0 | Anfrage | |
| 1015207 | 10,0 | 3,2 | 7,0 | Anfrage | |
| 1015208 | 10,0 | 3,2 | 8,0 | Anfrage | |
| 1015209 | 10,0 | 3,2 | 9,0 | Anfrage | |
| 1015210 | 10,0 | 3,2 | 10,0 | Anfrage | |
| 1015211 | 10,0 | 3,2 | 11,0 | Anfrage | |
| 1015212 | 10,0 | 3,2 | 12,0 | Anfrage | |
| 1015213 | 10,0 | 3,2 | 13,0 | Anfrage | |
| 1015214 | 10,0 | 3,2 | 14,0 | Anfrage | |
| 1015215 | 10,0 | 3,2 | 15,0 | Anfrage | |
| 1015216 | 10,0 | 3,2 | 16,0 | Anfrage | |
| 1015217 | 10,0 | 3,2 | 17,0 | Anfrage | |
| 1015218 | 10,0 | 3,2 | 18,0 | Anfrage | |
| 1015219 | 10,0 | 3,2 | 19,0 | Anfrage | |
| 1015220 | 10,0 | 3,2 | 20,0 | Anfrage |
Art.-Nr. 101 56 XX Außen-Ø = 10,0mm Innen-Ø = 6,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1015602 | 10,0 | 6,2 | 2,0 | Anfrage | |
| 1015603 | 10,0 | 6,2 | 3,0 | Anfrage | |
| 1015604 | 10,0 | 6,2 | 4,0 | Anfrage | |
| 1015605 | 10,0 | 6,2 | 5,0 | Anfrage | |
| 1015606 | 10,0 | 6,2 | 6,0 | Anfrage | |
| 1015607 | 10,0 | 6,2 | 7,0 | Anfrage | |
| 1015608 | 10,0 | 6,2 | 8,0 | Anfrage | |
| 1015609 | 10,0 | 6,2 | 9,0 | Anfrage | |
| 1015610 | 10,0 | 6,2 | 10,0 | Anfrage | |
| 1015611 | 10,0 | 6,2 | 11,0 | Anfrage | |
| 1015612 | 10,0 | 6,2 | 12,0 | Anfrage | |
| 1015613 | 10,0 | 6,2 | 13,0 | Anfrage | |
| 1015614 | 10,0 | 6,2 | 14,0 | Anfrage | |
| 1015615 | 10,0 | 6,2 | 15,0 | Anfrage | |
| 1015616 | 10,0 | 6,2 | 16,0 | Anfrage | |
| 1015617 | 10,0 | 6,2 | 17,0 | Anfrage | |
| 1015618 | 10,0 | 6,2 | 18,0 | Anfrage | |
| 1015619 | 10,0 | 6,2 | 19,0 | Anfrage | |
| 1015620 | 10,0 | 6,2 | 20,0 | Anfrage | |
| 1015621 | 10,0 | 6,2 | 21,0 | Anfrage | |
| 1015622 | 10,0 | 6,2 | 22,0 | Anfrage | |
| 1015623 | 10,0 | 6,2 | 23,0 | Anfrage | |
| 1015624 | 10,0 | 6,2 | 24,0 | Anfrage | |
| 1015625 | 10,0 | 6,2 | 25,0 | Anfrage | |
| 1015626 | 10,0 | 6,2 | 26,0 | Anfrage | |
| 1015627 | 10,0 | 6,2 | 27,0 | Anfrage | |
| 1015628 | 10,0 | 6,2 | 28,0 | Anfrage | |
| 1015629 | 10,0 | 6,2 | 29,0 | Anfrage | |
| 1015630 | 10,0 | 6,2 | 30,0 | Anfrage | |
| 1015631 | 10,0 | 6,2 | 31,0 | Anfrage | |
| 1015632 | 10,0 | 6,2 | 32,0 | Anfrage | |
| 1015633 | 10,0 | 6,2 | 33,0 | Anfrage | |
| 1015634 | 10,0 | 6,2 | 34,0 | Anfrage | |
| 1015635 | 10,0 | 6,2 | 35,0 | Anfrage | |
| 1015636 | 10,0 | 6,2 | 36,0 | Anfrage | |
| 1015637 | 10,0 | 6,2 | 37,0 | Anfrage | |
| 1015638 | 10,0 | 6,2 | 38,0 | Anfrage | |
| 1015639 | 10,0 | 6,2 | 39,0 | Anfrage | |
| 1015640 | 10,0 | 6,2 | 40,0 | Anfrage | |
| 1015641 | 10,0 | 6,2 | 41,0 | Anfrage | |
| 1015642 | 10,0 | 6,2 | 42,0 | Anfrage | |
| 1015643 | 10,0 | 6,2 | 43,0 | Anfrage | |
| 1015644 | 10,0 | 6,2 | 44,0 | Anfrage | |
| 1015645 | 10,0 | 6,2 | 45,0 | Anfrage | |
| 1015646 | 10,0 | 6,2 | 46,0 | Anfrage | |
| 1015647 | 10,0 | 6,2 | 47,0 | Anfrage | |
| 1015648 | 10,0 | 6,2 | 48,0 | Anfrage | |
| 1015649 | 10,0 | 6,2 | 49,0 | Anfrage | |
| 1015650 | 10,0 | 6,2 | 50,0 | Anfrage | |
| 1015651 | 10,0 | 6,2 | 51,0 | Anfrage | |
| 1015652 | 10,0 | 6,2 | 52,0 | Anfrage | |
| 1015653 | 10,0 | 6,2 | 53,0 | Anfrage | |
| 1015654 | 10,0 | 6,2 | 54,0 | Anfrage | |
| 1015655 | 10,0 | 6,2 | 55,0 | Anfrage |
Art.-Nr. 101 40 XX Außen-Ø = 12,0mm Innen-Ø = 6,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1014002 | 12,0 | 6,2 | 2,0 | Anfrage | |
| 1014003 | 12,0 | 6,2 | 3,0 | Anfrage | |
| 1014004 | 12,0 | 6,2 | 4,0 | Anfrage | |
| 1014005 | 12,0 | 6,2 | 5,0 | Anfrage | |
| 1014006 | 12,0 | 6,2 | 6,0 | Anfrage | |
| 1014007 | 12,0 | 6,2 | 7,0 | Anfrage | |
| 1014008 | 12,0 | 6,2 | 8,0 | Anfrage | |
| 1014009 | 12,0 | 6,2 | 9,0 | Anfrage | |
| 1014010 | 12,0 | 6,2 | 10,0 | Anfrage | |
| 1014011 | 12,0 | 6,2 | 11,0 | Anfrage | |
| 1014012 | 12,0 | 6,2 | 12,0 | Anfrage | |
| 1014013 | 12,0 | 6,2 | 13,0 | Anfrage | |
| 1014014 | 12,0 | 6,2 | 14,0 | Anfrage | |
| 1014015 | 12,0 | 6,2 | 15,0 | Anfrage | |
| 1014016 | 12,0 | 6,2 | 16,0 | Anfrage | |
| 1014017 | 12,0 | 6,2 | 17,0 | Anfrage | |
| 1014018 | 12,0 | 6,2 | 18,0 | Anfrage | |
| 1014019 | 12,0 | 6,2 | 19,0 | Anfrage | |
| 1014020 | 12,0 | 6,2 | 20,0 | Anfrage | |
| 1014021 | 12,0 | 6,2 | 21,0 | Anfrage | |
| 1014022 | 12,0 | 6,2 | 22,0 | Anfrage | |
| 1014023 | 12,0 | 6,2 | 23,0 | Anfrage | |
| 1014024 | 12,0 | 6,2 | 24,0 | Anfrage | |
| 1014025 | 12,0 | 6,2 | 25,0 | Anfrage | |
| 1014026 | 12,0 | 6,2 | 26,0 | Anfrage | |
| 1014027 | 12,0 | 6,2 | 27,0 | Anfrage | |
| 1014028 | 12,0 | 6,2 | 28,0 | Anfrage | |
| 1014029 | 12,0 | 6,2 | 29,0 | Anfrage | |
| 1014030 | 12,0 | 6,2 | 30,0 | Anfrage | |
| 1014031 | 12,0 | 6,2 | 31,0 | Anfrage | |
| 1014032 | 12,0 | 6,2 | 32,0 | Anfrage | |
| 1014033 | 12,0 | 6,2 | 33,0 | Anfrage | |
| 1014034 | 12,0 | 6,2 | 34,0 | Anfrage | |
| 1014035 | 12,0 | 6,2 | 35,0 | Anfrage | |
| 1014036 | 12,0 | 6,2 | 36,0 | Anfrage | |
| 1014037 | 12,0 | 6,2 | 37,0 | Anfrage | |
| 1014038 | 12,0 | 6,2 | 38,0 | Anfrage | |
| 1014039 | 12,0 | 6,2 | 39,0 | Anfrage | |
| 1014040 | 12,0 | 6,2 | 40,0 | Anfrage | |
| 1014041 | 12,0 | 6,2 | 41,0 | Anfrage | |
| 1014042 | 12,0 | 6,2 | 42,0 | Anfrage | |
| 1014043 | 12,0 | 6,2 | 43,0 | Anfrage | |
| 1014044 | 12,0 | 6,2 | 44,0 | Anfrage | |
| 1014045 | 12,0 | 6,2 | 45,0 | Anfrage | |
| 1014046 | 12,0 | 6,2 | 46,0 | Anfrage | |
| 1014047 | 12,0 | 6,2 | 47,0 | Anfrage | |
| 1014048 | 12,0 | 6,2 | 48,0 | Anfrage | |
| 1014049 | 12,0 | 6,2 | 49,0 | Anfrage | |
| 1014050 | 12,0 | 6,2 | 50,0 | Anfrage | |
| 1014051 | 12,0 | 6,2 | 51,0 | Anfrage | |
| 1014052 | 12,0 | 6,2 | 52,0 | Anfrage | |
| 1014053 | 12,0 | 6,2 | 53,0 | Anfrage | |
| 1014054 | 12,0 | 6,2 | 54,0 | Anfrage | |
| 1014055 | 12,0 | 6,2 | 55,0 | Anfrage | |
| 1014056 | 12,0 | 6,2 | 56,0 | Anfrage | |
| 1014057 | 12,0 | 6,2 | 57,0 | Anfrage | |
| 1014058 | 12,0 | 6,2 | 58,0 | Anfrage | |
| 1014059 | 12,0 | 6,2 | 59,0 | Anfrage | |
| 1014060 | 12,0 | 6,2 | 60,0 | Anfrage | |
| 1014061 | 12,0 | 6,2 | 61,0 | Anfrage | |
| 1014062 | 12,0 | 6,2 | 62,0 | Anfrage | |
| 1014063 | 12,0 | 6,2 | 63,0 | Anfrage | |
| 1014064 | 12,0 | 6,2 | 64,0 | Anfrage | |
| 1014065 | 12,0 | 6,2 | 65,0 | Anfrage |
Art.-Nr. 101 08 XX Außen-Ø = 16,0mm Innen-Ø = 12,4mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1010802 | 16,0 | 12,4 | 2,0 | Anfrage | |
| 1010803 | 16,0 | 12,4 | 3,0 | Anfrage | |
| 1010804 | 16,0 | 12,4 | 4,0 | Anfrage | |
| 1010805 | 16,0 | 12,4 | 5,0 | Anfrage | |
| 1010806 | 16,0 | 12,4 | 6,0 | Anfrage | |
| 1010807 | 16,0 | 12,4 | 7,0 | Anfrage | |
| 1010808 | 16,0 | 12,4 | 8,0 | Anfrage | |
| 1010809 | 16,0 | 12,4 | 9,0 | Anfrage | |
| 1010810 | 16,0 | 12,4 | 10,0 | Anfrage | |
| 1010811 | 16,0 | 12,4 | 11,0 | Anfrage | |
| 1010812 | 16,0 | 12,4 | 12,0 | Anfrage | |
| 1010813 | 16,0 | 12,4 | 13,0 | Anfrage | |
| 1010814 | 16,0 | 12,4 | 14,0 | Anfrage | |
| 1010815 | 16,0 | 12,4 | 15,0 | Anfrage | |
| 1010816 | 16,0 | 12,4 | 16,0 | Anfrage | |
| 1010817 | 16,0 | 12,4 | 17,0 | Anfrage | |
| 1010818 | 16,0 | 12,4 | 18,0 | Anfrage | |
| 1010819 | 16,0 | 12,4 | 19,0 | Anfrage | |
| 1010820 | 16,0 | 12,4 | 20,0 | Anfrage | |
| 1010821 | 16,0 | 12,4 | 21,0 | Anfrage | |
| 1010822 | 16,0 | 12,4 | 22,0 | Anfrage | |
| 1010823 | 16,0 | 12,4 | 23,0 | Anfrage | |
| 1010824 | 16,0 | 12,4 | 24,0 | Anfrage | |
| 1010825 | 16,0 | 12,4 | 25,0 | Anfrage | |
| 1010826 | 16,0 | 12,4 | 26,0 | Anfrage | |
| 1010827 | 16,0 | 12,4 | 27,0 | Anfrage | |
| 1010828 | 16,0 | 12,4 | 28,0 | Anfrage | |
| 1010829 | 16,0 | 12,4 | 29,0 | Anfrage | |
| 1010830 | 16,0 | 12,4 | 30,0 | Anfrage | |
| 1010831 | 16,0 | 12,4 | 31,0 | Anfrage | |
| 1010832 | 16,0 | 12,4 | 32,0 | Anfrage | |
| 1010833 | 16,0 | 12,4 | 33,0 | Anfrage | |
| 1010834 | 16,0 | 12,4 | 34,0 | Anfrage | |
| 1010835 | 16,0 | 12,4 | 35,0 | Anfrage | |
| 1010836 | 16,0 | 12,4 | 36,0 | Anfrage | |
| 1010837 | 16,0 | 12,4 | 37,0 | Anfrage | |
| 1010838 | 16,0 | 12,4 | 38,0 | Anfrage | |
| 1010839 | 16,0 | 12,4 | 39,0 | Anfrage | |
| 1010840 | 16,0 | 12,4 | 40,0 | Anfrage | |
| 1010841 | 16,0 | 12,4 | 41,0 | Anfrage | |
| 1010842 | 16,0 | 12,4 | 42,0 | Anfrage | |
| 1010843 | 16,0 | 12,4 | 43,0 | Anfrage | |
| 1010844 | 16,0 | 12,4 | 44,0 | Anfrage | |
| 1010845 | 16,0 | 12,4 | 45,0 | Anfrage | |
| 1010846 | 16,0 | 12,4 | 46,0 | Anfrage | |
| 1010847 | 16,0 | 12,4 | 47,0 | Anfrage | |
| 1010848 | 16,0 | 12,4 | 48,0 | Anfrage | |
| 1010849 | 16,0 | 12,4 | 49,0 | Anfrage | |
| 1010850 | 16,0 | 12,4 | 50,0 | Anfrage |
Produktneuheiten
ABS-IA-M2,5-ST2,2 - SW5 Abstandsbolzen
- 6-kant Abstandsbolzen mit M2,5 Innen- und selbstschneidendem ST2,2 Außengewinde
- Schlüsselweite (SW) 5
- Außengewinde mit Hinterstich nach DIN76-B
- Material: Stahl verzinkt
- In weiteren Ausführungen erhältlich
LD-LM1 Lineardämpfer
- Lebensdauer: 100.000 Zyklen
- Temperaturbereich: -20°C bis +120°C
- Kraft: von 50N bis 500N @12mm/s
- Material Basis: Plastik
- Material Kolbenstange: Stahl
- Material Feder: Stahl
- Material Dichtung: Gummi
- Material Ventil und Kappe: Plastik
- Flüssigkeit Feder: Silikonöl
Unsere Services
Sie wünschen Beratung?
Wir freuen uns, wenn Sie mit uns Kontakt aufnehmen. Wir unterstützen Sie gerne!
