AH-PAS Abstandshülsen aus Kunststoff
Merkmale
- Material: Polyamid, glasfaserverstärkt (PA-GV)
- Farbe: schwarz
- temperaturbeständig bis +110°C

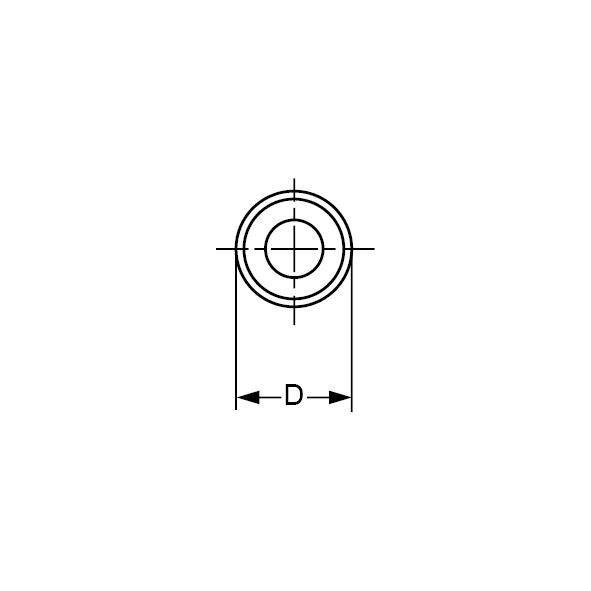

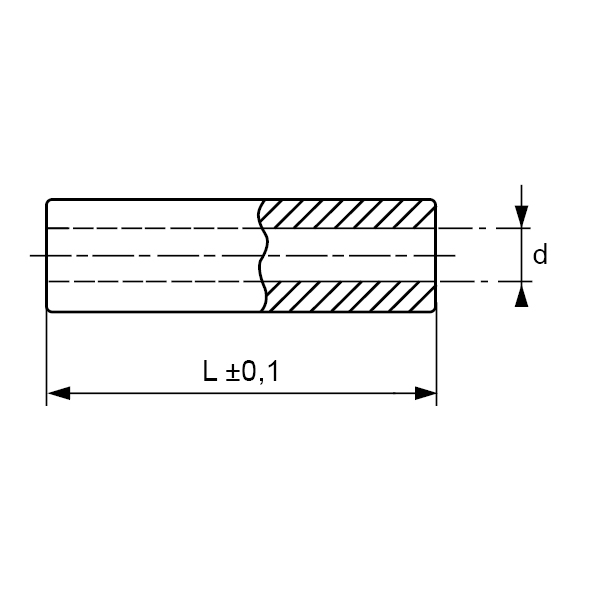

Technische Zeichnungen
Abmessungen in mm
Produktvarianten
Art.-Nr. 101 28 XX Außen-Ø = 4,0mm Innen-Ø = 2,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1012802 | 4,0 | 2,2 | 2,0 | Anfrage | |
| 1012803 | 4,0 | 2,2 | 3,0 | Anfrage | |
| 1012804 | 4,0 | 2,2 | 4,0 | Anfrage | |
| 1012805 | 4,0 | 2,2 | 5,0 | Anfrage | |
| 1012806 | 4,0 | 2,2 | 6,0 | Anfrage | |
| 1012807 | 4,0 | 2,2 | 7,0 | Anfrage | |
| 1012808 | 4,0 | 2,2 | 8,0 | Anfrage | |
| 1012809 | 4,0 | 2,2 | 9,0 | Anfrage | |
| 1012810 | 4,0 | 2,2 | 10,0 | Anfrage | |
| 1012811 | 4,0 | 2,2 | 11,0 | Anfrage | |
| 1012812 | 4,0 | 2,2 | 12,0 | Anfrage | |
| 1012813 | 4,0 | 2,2 | 13,0 | Anfrage | |
| 1012814 | 4,0 | 2,2 | 14,0 | Anfrage | |
| 1012815 | 4,0 | 2,2 | 15,0 | Anfrage | |
| 1012816 | 4,0 | 2,2 | 16,0 | Anfrage | |
| 1012817 | 4,0 | 2,2 | 17,0 | Anfrage | |
| 1012818 | 4,0 | 2,2 | 18,0 | Anfrage | |
| 1012819 | 4,0 | 2,2 | 19,0 | Anfrage | |
| 1012820 | 4,0 | 2,2 | 20,0 | Anfrage | |
| 1012821 | 4,0 | 2,2 | 21,0 | Anfrage | |
| 1012822 | 4,0 | 2,2 | 22,0 | Anfrage | |
| 1012823 | 4,0 | 2,2 | 23,0 | Anfrage | |
| 1012824 | 4,0 | 2,2 | 24,0 | Anfrage | |
| 1012825 | 4,0 | 2,2 | 25,0 | Anfrage | |
| 1012826 | 4,0 | 2,2 | 26,0 | Anfrage | |
| 1012827 | 4,0 | 2,2 | 27,0 | Anfrage | |
| 1012828 | 4,0 | 2,2 | 28,0 | Anfrage | |
| 1012829 | 4,0 | 2,2 | 29,0 | Anfrage | |
| 1012830 | 4,0 | 2,2 | 30,0 | Anfrage | |
| 1012831 | 4,0 | 2,2 | 31,0 | Anfrage | |
| 1012832 | 4,0 | 2,2 | 32,0 | Anfrage | |
| 1012833 | 4,0 | 2,2 | 33,0 | Anfrage | |
| 1012834 | 4,0 | 2,2 | 34,0 | Anfrage | |
| 1012835 | 4,0 | 2,2 | 35,0 | Anfrage | |
| 1012836 | 4,0 | 2,2 | 36,0 | Anfrage | |
| 1012837 | 4,0 | 2,2 | 37,0 | Anfrage | |
| 1012838 | 4,0 | 2,2 | 38,0 | Anfrage | |
| 1012839 | 4,0 | 2,2 | 39,0 | Anfrage | |
| 1012840 | 4,0 | 2,2 | 40,0 | Anfrage | |
| 1012841 | 4,0 | 2,2 | 41,0 | Anfrage | |
| 1012842 | 4,0 | 2,2 | 42,0 | Anfrage | |
| 1012843 | 4,0 | 2,2 | 43,0 | Anfrage | |
| 1012844 | 4,0 | 2,2 | 44,0 | Anfrage | |
| 1012845 | 4,0 | 2,2 | 45,0 | Anfrage | |
| 1012846 | 4,0 | 2,2 | 46,0 | Anfrage | |
| 1012847 | 4,0 | 2,2 | 47,0 | Anfrage | |
| 1012848 | 4,0 | 2,2 | 48,0 | Anfrage | |
| 1012849 | 4,0 | 2,2 | 49,0 | Anfrage | |
| 1012850 | 4,0 | 2,2 | 50,0 | Anfrage |
Art.-Nr. 101 21 XX Außen-Ø = 4,0mm Innen-Ø = 2,7mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1012102 | 4,0 | 2,7 | 2,0 | Anfrage | |
| 1012103 | 4,0 | 2,7 | 3,0 | Anfrage | |
| 1012104 | 4,0 | 2,7 | 4,0 | Anfrage | |
| 1012105 | 4,0 | 2,7 | 5,0 | Anfrage | |
| 1012106 | 4,0 | 2,7 | 6,0 | Anfrage | |
| 1012107 | 4,0 | 2,7 | 7,0 | Anfrage | |
| 1012108 | 4,0 | 2,7 | 8,0 | Anfrage | |
| 1012109 | 4,0 | 2,7 | 9,0 | Anfrage | |
| 1012110 | 4,0 | 2,7 | 10,0 | Anfrage | |
| 1012111 | 4,0 | 2,7 | 11,0 | Anfrage | |
| 1012112 | 4,0 | 2,7 | 12,0 | Anfrage | |
| 1012113 | 4,0 | 2,7 | 13,0 | Anfrage | |
| 1012114 | 4,0 | 2,7 | 14,0 | Anfrage | |
| 1012115 | 4,0 | 2,7 | 15,0 | Anfrage | |
| 1012116 | 4,0 | 2,7 | 16,0 | Anfrage | |
| 1012117 | 4,0 | 2,7 | 17,0 | Anfrage | |
| 1012118 | 4,0 | 2,7 | 18,0 | Anfrage | |
| 1012119 | 4,0 | 2,7 | 19,0 | Anfrage | |
| 1012120 | 4,0 | 2,7 | 20,0 | Anfrage | |
| 1012121 | 4,0 | 2,7 | 21,0 | Anfrage | |
| 1012122 | 4,0 | 2,7 | 22,0 | Anfrage | |
| 1012123 | 4,0 | 2,7 | 23,0 | Anfrage | |
| 1012124 | 4,0 | 2,7 | 24,0 | Anfrage | |
| 1012125 | 4,0 | 2,7 | 25,0 | Anfrage | |
| 1012126 | 4,0 | 2,7 | 26,0 | Anfrage | |
| 1012127 | 4,0 | 2,7 | 27,0 | Anfrage | |
| 1012128 | 4,0 | 2,7 | 28,0 | Anfrage | |
| 1012129 | 4,0 | 2,7 | 29,0 | Anfrage | |
| 1012130 | 4,0 | 2,7 | 30,0 | Anfrage |
Art.-Nr. 101 23 XX Außen-Ø = 4,0mm Innen-Ø = 3,0mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1012302 | 4,0 | 3,0 | 2,0 | Anfrage | |
| 1012303 | 4,0 | 3,0 | 3,0 | Anfrage | |
| 1012304 | 4,0 | 3,0 | 4,0 | Anfrage | |
| 1012305 | 4,0 | 3,0 | 5,0 | Anfrage | |
| 1012306 | 4,0 | 3,0 | 6,0 | Anfrage | |
| 1012307 | 4,0 | 3,0 | 7,0 | Anfrage | |
| 1012308 | 4,0 | 3,0 | 8,0 | Anfrage | |
| 1012309 | 4,0 | 3,0 | 9,0 | Anfrage | |
| 1012310 | 4,0 | 3,0 | 10,0 | Anfrage | |
| 1012311 | 4,0 | 3,0 | 11,0 | Anfrage | |
| 1012312 | 4,0 | 3,0 | 12,0 | Anfrage | |
| 1012313 | 4,0 | 3,0 | 13,0 | Anfrage | |
| 1012314 | 4,0 | 3,0 | 14,0 | Anfrage | |
| 1012315 | 4,0 | 3,0 | 15,0 | Anfrage | |
| 1012316 | 4,0 | 3,0 | 16,0 | Anfrage | |
| 1012317 | 4,0 | 3,0 | 17,0 | Anfrage | |
| 1012318 | 4,0 | 3,0 | 18,0 | Anfrage | |
| 1012319 | 4,0 | 3,0 | 19,0 | Anfrage | |
| 1012320 | 4,0 | 3,0 | 20,0 | Anfrage |
Art.-Nr. 101 05 XX Außen-Ø = 5,0mm Innen-Ø = 2,7mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1010502 | 5,0 | 2,7 | 2,0 | Anfrage | |
| 1010503 | 5,0 | 2,7 | 3,0 | Anfrage | |
| 1010504 | 5,0 | 2,7 | 4,0 | Anfrage | |
| 1010505 | 5,0 | 2,7 | 5,0 | Anfrage | |
| 1010506 | 5,0 | 2,7 | 6,0 | Anfrage | |
| 1010507 | 5,0 | 2,7 | 7,0 | Anfrage | |
| 1010508 | 5,0 | 2,7 | 8,0 | Anfrage | |
| 1010509 | 5,0 | 2,7 | 9,0 | Anfrage | |
| 1010510 | 5,0 | 2,7 | 10,0 | Anfrage | |
| 1010511 | 5,0 | 2,7 | 11,0 | Anfrage | |
| 1010512 | 5,0 | 2,7 | 12,0 | Anfrage | |
| 1010513 | 5,0 | 2,7 | 13,0 | Anfrage | |
| 1010514 | 5,0 | 2,7 | 14,0 | Anfrage | |
| 1010515 | 5,0 | 2,7 | 15,0 | Anfrage | |
| 1010516 | 5,0 | 2,7 | 16,0 | Anfrage | |
| 1010517 | 5,0 | 2,7 | 17,0 | Anfrage | |
| 1010518 | 5,0 | 2,7 | 18,0 | Anfrage | |
| 1010519 | 5,0 | 2,7 | 19,0 | Anfrage | |
| 1010520 | 5,0 | 2,7 | 20,0 | Anfrage | |
| 1010521 | 5,0 | 2,7 | 21,0 | Anfrage | |
| 1010522 | 5,0 | 2,7 | 22,0 | Anfrage | |
| 1010523 | 5,0 | 2,7 | 23,0 | Anfrage | |
| 1010524 | 5,0 | 2,7 | 24,0 | Anfrage | |
| 1010525 | 5,0 | 2,7 | 25,0 | Anfrage | |
| 1010526 | 5,0 | 2,7 | 26,0 | Anfrage | |
| 1010527 | 5,0 | 2,7 | 27,0 | Anfrage | |
| 1010528 | 5,0 | 2,7 | 28,0 | Anfrage | |
| 1010529 | 5,0 | 2,7 | 29,0 | Anfrage | |
| 1010530 | 5,0 | 2,7 | 30,0 | Anfrage | |
| 1010531 | 5,0 | 2,7 | 31,0 | Anfrage | |
| 1010532 | 5,0 | 2,7 | 32,0 | Anfrage | |
| 1010533 | 5,0 | 2,7 | 33,0 | Anfrage | |
| 1010534 | 5,0 | 2,7 | 34,0 | Anfrage | |
| 1010535 | 5,0 | 2,7 | 35,0 | Anfrage | |
| 1010536 | 5,0 | 2,7 | 36,0 | Anfrage | |
| 1010537 | 5,0 | 2,7 | 37,0 | Anfrage | |
| 1010538 | 5,0 | 2,7 | 38,0 | Anfrage | |
| 1010539 | 5,0 | 2,7 | 39,0 | Anfrage | |
| 1010540 | 5,0 | 2,7 | 40,0 | Anfrage | |
| 1010541 | 5,0 | 2,7 | 41,0 | Anfrage | |
| 1010542 | 5,0 | 2,7 | 42,0 | Anfrage | |
| 1010543 | 5,0 | 2,7 | 43,0 | Anfrage | |
| 1010544 | 5,0 | 2,7 | 44,0 | Anfrage | |
| 1010545 | 5,0 | 2,7 | 45,0 | Anfrage | |
| 1010546 | 5,0 | 2,7 | 46,0 | Anfrage | |
| 1010547 | 5,0 | 2,7 | 47,0 | Anfrage | |
| 1010548 | 5,0 | 2,7 | 48,0 | Anfrage | |
| 1010549 | 5,0 | 2,7 | 49,0 | Anfrage | |
| 1010550 | 5,0 | 2,7 | 50,0 | Anfrage | |
| 1010551 | 5,0 | 2,7 | 51,0 | Anfrage | |
| 1010552 | 5,0 | 2,7 | 52,0 | Anfrage | |
| 1010553 | 5,0 | 2,7 | 53,0 | Anfrage | |
| 1010554 | 5,0 | 2,7 | 54,0 | Anfrage | |
| 1010555 | 5,0 | 2,7 | 55,0 | Anfrage |
Art.-Nr. 101 06 XX Außen-Ø = 5,0mm Innen-Ø = 3,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1010602 | 5,0 | 3,2 | 2,0 | Anfrage | |
| 1010603 | 5,0 | 3,2 | 3,0 | Anfrage | |
| 1010604 | 5,0 | 3,2 | 4,0 | Anfrage | |
| 1010605 | 5,0 | 3,2 | 5,0 | Anfrage | |
| 1010606 | 5,0 | 3,2 | 6,0 | Anfrage | |
| 1010607 | 5,0 | 3,2 | 7,0 | Anfrage | |
| 1010608 | 5,0 | 3,2 | 8,0 | Anfrage | |
| 1010609 | 5,0 | 3,2 | 9,0 | Anfrage | |
| 1010610 | 5,0 | 3,2 | 10,0 | Anfrage | |
| 1010611 | 5,0 | 3,2 | 11,0 | Anfrage | |
| 1010612 | 5,0 | 3,2 | 12,0 | Anfrage | |
| 1010613 | 5,0 | 3,2 | 13,0 | Anfrage | |
| 1010614 | 5,0 | 3,2 | 14,0 | Anfrage | |
| 1010615 | 5,0 | 3,2 | 15,0 | Anfrage | |
| 1010616 | 5,0 | 3,2 | 16,0 | Anfrage | |
| 1010617 | 5,0 | 3,2 | 17,0 | Anfrage | |
| 1010618 | 5,0 | 3,2 | 18,0 | Anfrage | |
| 1010619 | 5,0 | 3,2 | 19,0 | Anfrage | |
| 1010620 | 5,0 | 3,2 | 20,0 | Anfrage | |
| 1010621 | 5,0 | 3,2 | 21,0 | Anfrage | |
| 1010622 | 5,0 | 3,2 | 22,0 | Anfrage | |
| 1010623 | 5,0 | 3,2 | 23,0 | Anfrage | |
| 1010624 | 5,0 | 3,2 | 24,0 | Anfrage | |
| 1010625 | 5,0 | 3,2 | 25,0 | Anfrage | |
| 1010626 | 5,0 | 3,2 | 26,0 | Anfrage | |
| 1010627 | 5,0 | 3,2 | 27,0 | Anfrage | |
| 1010628 | 5,0 | 3,2 | 28,0 | Anfrage | |
| 1010629 | 5,0 | 3,2 | 29,0 | Anfrage | |
| 1010630 | 5,0 | 3,2 | 30,0 | Anfrage | |
| 1010631 | 5,0 | 3,2 | 31,0 | Anfrage | |
| 1010632 | 5,0 | 3,2 | 32,0 | Anfrage | |
| 1010633 | 5,0 | 3,2 | 33,0 | Anfrage | |
| 1010634 | 5,0 | 3,2 | 34,0 | Anfrage | |
| 1010635 | 5,0 | 3,2 | 35,0 | Anfrage | |
| 1010636 | 5,0 | 3,2 | 36,0 | Anfrage | |
| 1010637 | 5,0 | 3,2 | 37,0 | Anfrage | |
| 1010638 | 5,0 | 3,2 | 38,0 | Anfrage | |
| 1010639 | 5,0 | 3,2 | 39,0 | Anfrage | |
| 1010640 | 5,0 | 3,2 | 40,0 | Anfrage | |
| 1010641 | 5,0 | 3,2 | 41,0 | Anfrage | |
| 1010642 | 5,0 | 3,2 | 42,0 | Anfrage | |
| 1010643 | 5,0 | 3,2 | 43,0 | Anfrage | |
| 1010644 | 5,0 | 3,2 | 44,0 | Anfrage | |
| 1010645 | 5,0 | 3,2 | 45,0 | Anfrage | |
| 1010646 | 5,0 | 3,2 | 46,0 | Anfrage | |
| 1010647 | 5,0 | 3,2 | 47,0 | Anfrage | |
| 1010648 | 5,0 | 3,2 | 48,0 | Anfrage | |
| 1010649 | 5,0 | 3,2 | 49,0 | Anfrage | |
| 1010650 | 5,0 | 3,2 | 50,0 | Anfrage |
Art.-Nr. 101 07 XX Außen-Ø = 6,0mm Innen-Ø = 3,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1010702 | 6,0 | 3,2 | 2,0 | Anfrage | |
| 1010703 | 6,0 | 3,2 | 3,0 | Anfrage | |
| 1010704 | 6,0 | 3,2 | 4,0 | Anfrage | |
| 1010705 | 6,0 | 3,2 | 5,0 | Anfrage | |
| 1010706 | 6,0 | 3,2 | 6,0 | Anfrage | |
| 1010707 | 6,0 | 3,2 | 7,0 | Anfrage | |
| 1010708 | 6,0 | 3,2 | 8,0 | Anfrage | |
| 1010709 | 6,0 | 3,2 | 9,0 | Anfrage | |
| 1010710 | 6,0 | 3,2 | 10,0 | Anfrage | |
| 1010711 | 6,0 | 3,2 | 11,0 | Anfrage | |
| 1010712 | 6,0 | 3,2 | 12,0 | Anfrage | |
| 1010713 | 6,0 | 3,2 | 13,0 | Anfrage | |
| 1010714 | 6,0 | 3,2 | 14,0 | Anfrage | |
| 1010715 | 6,0 | 3,2 | 15,0 | Anfrage | |
| 1010716 | 6,0 | 3,2 | 16,0 | Anfrage | |
| 1010717 | 6,0 | 3,2 | 17,0 | Anfrage | |
| 1010718 | 6,0 | 3,2 | 18,0 | Anfrage | |
| 1010719 | 6,0 | 3,2 | 19,0 | Anfrage | |
| 1010720 | 6,0 | 3,2 | 20,0 | Anfrage | |
| 1010721 | 6,0 | 3,2 | 21,0 | Anfrage | |
| 1010722 | 6,0 | 3,2 | 22,0 | Anfrage | |
| 1010723 | 6,0 | 3,2 | 23,0 | Anfrage | |
| 1010724 | 6,0 | 3,2 | 24,0 | Anfrage | |
| 1010725 | 6,0 | 3,2 | 25,0 | Anfrage | |
| 1010726 | 6,0 | 3,2 | 26,0 | Anfrage | |
| 1010727 | 6,0 | 3,2 | 27,0 | Anfrage | |
| 1010728 | 6,0 | 3,2 | 28,0 | Anfrage | |
| 1010729 | 6,0 | 3,2 | 29,0 | Anfrage | |
| 1010730 | 6,0 | 3,2 | 30,0 | Anfrage | |
| 1010731 | 6,0 | 3,2 | 31,0 | Anfrage | |
| 1010732 | 6,0 | 3,2 | 32,0 | Anfrage | |
| 1010733 | 6,0 | 3,2 | 33,0 | Anfrage | |
| 1010734 | 6,0 | 3,2 | 34,0 | Anfrage | |
| 1010735 | 6,0 | 3,2 | 35,0 | Anfrage | |
| 1010736 | 6,0 | 3,2 | 36,0 | Anfrage | |
| 1010737 | 6,0 | 3,2 | 37,0 | Anfrage | |
| 1010738 | 6,0 | 3,2 | 38,0 | Anfrage | |
| 1010739 | 6,0 | 3,2 | 39,0 | Anfrage | |
| 1010740 | 6,0 | 3,2 | 40,0 | Anfrage | |
| 1010741 | 6,0 | 3,2 | 41,0 | Anfrage | |
| 1010742 | 6,0 | 3,2 | 42,0 | Anfrage | |
| 1010743 | 6,0 | 3,2 | 43,0 | Anfrage | |
| 1010744 | 6,0 | 3,2 | 44,0 | Anfrage | |
| 1010745 | 6,0 | 3,2 | 45,0 | Anfrage | |
| 1010746 | 6,0 | 3,2 | 46,0 | Anfrage | |
| 1010747 | 6,0 | 3,2 | 47,0 | Anfrage | |
| 1010748 | 6,0 | 3,2 | 48,0 | Anfrage | |
| 1010749 | 6,0 | 3,2 | 49,0 | Anfrage | |
| 1010750 | 6,0 | 3,2 | 50,0 | Anfrage | |
| 1010751 | 6,0 | 3,2 | 51,0 | Anfrage | |
| 1010752 | 6,0 | 3,2 | 52,0 | Anfrage | |
| 1010753 | 6,0 | 3,2 | 53,0 | Anfrage | |
| 1010754 | 6,0 | 3,2 | 54,0 | Anfrage | |
| 1010755 | 6,0 | 3,2 | 55,0 | Anfrage | |
| 1010756 | 6,0 | 3,2 | 56,0 | Anfrage | |
| 1010757 | 6,0 | 3,2 | 57,0 | Anfrage | |
| 1010758 | 6,0 | 3,2 | 58,0 | Anfrage | |
| 1010759 | 6,0 | 3,2 | 59,0 | Anfrage | |
| 1010760 | 6,0 | 3,2 | 60,0 | Anfrage |
Art.-Nr. 101 03 XX Außen-Ø = 6,0mm Innen-Ø = 3,4mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1010302 | 6,0 | 3,4 | 2,0 | Anfrage | |
| 1010303 | 6,0 | 3,4 | 3,0 | Anfrage | |
| 1010304 | 6,0 | 3,4 | 4,0 | Anfrage | |
| 1010305 | 6,0 | 3,4 | 5,0 | Anfrage | |
| 1010306 | 6,0 | 3,4 | 6,0 | Anfrage | |
| 1010307 | 6,0 | 3,4 | 7,0 | Anfrage | |
| 1010308 | 6,0 | 3,4 | 8,0 | Anfrage | |
| 1010309 | 6,0 | 3,4 | 9,0 | Anfrage | |
| 1010310 | 6,0 | 3,4 | 10,0 | Anfrage | |
| 1010311 | 6,0 | 3,4 | 11,0 | Anfrage | |
| 1010312 | 6,0 | 3,4 | 12,0 | Anfrage | |
| 1010313 | 6,0 | 3,4 | 13,0 | Anfrage | |
| 1010314 | 6,0 | 3,4 | 14,0 | Anfrage | |
| 1010315 | 6,0 | 3,4 | 15,0 | Anfrage | |
| 1010316 | 6,0 | 3,4 | 16,0 | Anfrage | |
| 1010317 | 6,0 | 3,4 | 17,0 | Anfrage | |
| 1010318 | 6,0 | 3,4 | 18,0 | Anfrage | |
| 1010319 | 6,0 | 3,4 | 19,0 | Anfrage | |
| 1010320 | 6,0 | 3,4 | 20,0 | Anfrage | |
| 1010321 | 6,0 | 3,4 | 21,0 | Anfrage | |
| 1010322 | 6,0 | 3,4 | 22,0 | Anfrage | |
| 1010323 | 6,0 | 3,4 | 23,0 | Anfrage | |
| 1010324 | 6,0 | 3,4 | 24,0 | Anfrage | |
| 1010325 | 6,0 | 3,4 | 25,0 | Anfrage | |
| 1010326 | 6,0 | 3,4 | 26,0 | Anfrage | |
| 1010327 | 6,0 | 3,4 | 27,0 | Anfrage | |
| 1010328 | 6,0 | 3,4 | 28,0 | Anfrage | |
| 1010329 | 6,0 | 3,4 | 29,0 | Anfrage | |
| 1010330 | 6,0 | 3,4 | 30,0 | Anfrage | |
| 1010331 | 6,0 | 3,4 | 31,0 | Anfrage | |
| 1010332 | 6,0 | 3,4 | 32,0 | Anfrage | |
| 1010333 | 6,0 | 3,4 | 33,0 | Anfrage | |
| 1010334 | 6,0 | 3,4 | 34,0 | Anfrage | |
| 1010335 | 6,0 | 3,4 | 35,0 | Anfrage | |
| 1010336 | 6,0 | 3,4 | 36,0 | Anfrage | |
| 1010337 | 6,0 | 3,4 | 37,0 | Anfrage | |
| 1010338 | 6,0 | 3,4 | 38,0 | Anfrage | |
| 1010339 | 6,0 | 3,4 | 39,0 | Anfrage | |
| 1010340 | 6,0 | 3,4 | 40,0 | Anfrage | |
| 1010341 | 6,0 | 3,4 | 41,0 | Anfrage | |
| 1010342 | 6,0 | 3,4 | 42,0 | Anfrage | |
| 1010343 | 6,0 | 3,4 | 43,0 | Anfrage | |
| 1010344 | 6,0 | 3,4 | 44,0 | Anfrage | |
| 1010345 | 6,0 | 3,4 | 45,0 | Anfrage | |
| 1010346 | 6,0 | 3,4 | 46,0 | Anfrage | |
| 1010347 | 6,0 | 3,4 | 47,0 | Anfrage | |
| 1010348 | 6,0 | 3,4 | 48,0 | Anfrage | |
| 1010349 | 6,0 | 3,4 | 49,0 | Anfrage | |
| 1010350 | 6,0 | 3,4 | 50,0 | Anfrage | |
| 1010351 | 6,0 | 3,4 | 51,0 | Anfrage | |
| 1010352 | 6,0 | 3,4 | 52,0 | Anfrage | |
| 1010353 | 6,0 | 3,4 | 53,0 | Anfrage | |
| 1010354 | 6,0 | 3,4 | 54,0 | Anfrage | |
| 1010355 | 6,0 | 3,4 | 55,0 | Anfrage | |
| 1010356 | 6,0 | 3,4 | 56,0 | Anfrage | |
| 1010357 | 6,0 | 3,4 | 57,0 | Anfrage | |
| 1010358 | 6,0 | 3,4 | 58,0 | Anfrage | |
| 1010359 | 6,0 | 3,4 | 59,0 | Anfrage | |
| 1010360 | 6,0 | 3,4 | 60,0 | Anfrage |
Art.-Nr. 101 27 XX Außen-Ø = 6,0mm Innen-Ø = 4,1mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1012702 | 6,0 | 4,1 | 2,0 | Anfrage | |
| 1012703 | 6,0 | 4,1 | 3,0 | Anfrage | |
| 1012704 | 6,0 | 4,1 | 4,0 | Anfrage | |
| 1012705 | 6,0 | 4,1 | 5,0 | Anfrage | |
| 1012706 | 6,0 | 4,1 | 6,0 | Anfrage | |
| 1012707 | 6,0 | 4,1 | 7,0 | Anfrage | |
| 1012708 | 6,0 | 4,1 | 8,0 | Anfrage | |
| 1012709 | 6,0 | 4,1 | 9,0 | Anfrage | |
| 1012710 | 6,0 | 4,1 | 10,0 | Anfrage | |
| 1012711 | 6,0 | 4,1 | 11,0 | Anfrage | |
| 1012712 | 6,0 | 4,1 | 12,0 | Anfrage | |
| 1012713 | 6,0 | 4,1 | 13,0 | Anfrage | |
| 1012714 | 6,0 | 4,1 | 14,0 | Anfrage | |
| 1012715 | 6,0 | 4,1 | 15,0 | Anfrage | |
| 1012716 | 6,0 | 4,1 | 16,0 | Anfrage | |
| 1012717 | 6,0 | 4,1 | 17,0 | Anfrage | |
| 1012718 | 6,0 | 4,1 | 18,0 | Anfrage | |
| 1012719 | 6,0 | 4,1 | 19,0 | Anfrage | |
| 1012720 | 6,0 | 4,1 | 20,0 | Anfrage | |
| 1012721 | 6,0 | 4,1 | 21,0 | Anfrage | |
| 1012722 | 6,0 | 4,1 | 22,0 | Anfrage | |
| 1012723 | 6,0 | 4,1 | 23,0 | Anfrage | |
| 1012724 | 6,0 | 4,1 | 24,0 | Anfrage | |
| 1012725 | 6,0 | 4,1 | 25,0 | Anfrage | |
| 1012726 | 6,0 | 4,1 | 26,0 | Anfrage | |
| 1012727 | 6,0 | 4,1 | 27,0 | Anfrage | |
| 1012728 | 6,0 | 4,1 | 28,0 | Anfrage | |
| 1012729 | 6,0 | 4,1 | 29,0 | Anfrage | |
| 1012730 | 6,0 | 4,1 | 30,0 | Anfrage | |
| 1012731 | 6,0 | 4,1 | 31,0 | Anfrage | |
| 1012732 | 6,0 | 4,1 | 32,0 | Anfrage | |
| 1012733 | 6,0 | 4,1 | 33,0 | Anfrage | |
| 1012734 | 6,0 | 4,1 | 34,0 | Anfrage | |
| 1012735 | 6,0 | 4,1 | 35,0 | Anfrage | |
| 1012736 | 6,0 | 4,1 | 36,0 | Anfrage | |
| 1012737 | 6,0 | 4,1 | 37,0 | Anfrage | |
| 1012738 | 6,0 | 4,1 | 38,0 | Anfrage | |
| 1012739 | 6,0 | 4,1 | 39,0 | Anfrage | |
| 1012740 | 6,0 | 4,1 | 40,0 | Anfrage | |
| 1012741 | 6,0 | 4,1 | 41,0 | Anfrage | |
| 1012742 | 6,0 | 4,1 | 42,0 | Anfrage | |
| 1012743 | 6,0 | 4,1 | 43,0 | Anfrage | |
| 1012744 | 6,0 | 4,1 | 44,0 | Anfrage | |
| 1012745 | 6,0 | 4,1 | 45,0 | Anfrage | |
| 1012746 | 6,0 | 4,1 | 46,0 | Anfrage | |
| 1012747 | 6,0 | 4,1 | 47,0 | Anfrage | |
| 1012748 | 6,0 | 4,1 | 48,0 | Anfrage | |
| 1012749 | 6,0 | 4,1 | 49,0 | Anfrage | |
| 1012750 | 6,0 | 4,1 | 50,0 | Anfrage | |
| 1012751 | 6,0 | 4,1 | 51,0 | Anfrage | |
| 1012752 | 6,0 | 4,1 | 52,0 | Anfrage | |
| 1012753 | 6,0 | 4,1 | 53,0 | Anfrage | |
| 1012754 | 6,0 | 4,1 | 54,0 | Anfrage |
Art.-Nr. 101 46 XX Außen-Ø = 7,0mm Innen-Ø = 3,4mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1014602 | 7,0 | 3,4 | 2,0 | Anfrage | |
| 1014603 | 7,0 | 3,4 | 3,0 | Anfrage | |
| 1014604 | 7,0 | 3,4 | 4,0 | Anfrage | |
| 1014605 | 7,0 | 3,4 | 5,0 | Anfrage | |
| 1014606 | 7,0 | 3,4 | 6,0 | Anfrage | |
| 1014607 | 7,0 | 3,4 | 7,0 | Anfrage | |
| 1014608 | 7,0 | 3,4 | 8,0 | Anfrage | |
| 1014609 | 7,0 | 3,4 | 9,0 | Anfrage | |
| 1014610 | 7,0 | 3,4 | 10,0 | Anfrage | |
| 1014611 | 7,0 | 3,4 | 11,0 | Anfrage | |
| 1014612 | 7,0 | 3,4 | 12,0 | Anfrage | |
| 1014613 | 7,0 | 3,4 | 13,0 | Anfrage | |
| 1014614 | 7,0 | 3,4 | 14,0 | Anfrage | |
| 1014615 | 7,0 | 3,4 | 15,0 | Anfrage | |
| 1014616 | 7,0 | 3,4 | 16,0 | Anfrage | |
| 1014617 | 7,0 | 3,4 | 17,0 | Anfrage | |
| 1014618 | 7,0 | 3,4 | 18,0 | Anfrage | |
| 1014619 | 7,0 | 3,4 | 19,0 | Anfrage | |
| 1014620 | 7,0 | 3,4 | 20,0 | Anfrage | |
| 1014621 | 7,0 | 3,4 | 21,0 | Anfrage | |
| 1014622 | 7,0 | 3,4 | 22,0 | Anfrage | |
| 1014623 | 7,0 | 3,4 | 23,0 | Anfrage | |
| 1014624 | 7,0 | 3,4 | 24,0 | Anfrage | |
| 1014625 | 7,0 | 3,4 | 25,0 | Anfrage | |
| 1014626 | 7,0 | 3,4 | 26,0 | Anfrage | |
| 1014627 | 7,0 | 3,4 | 27,0 | Anfrage | |
| 1014628 | 7,0 | 3,4 | 28,0 | Anfrage | |
| 1014629 | 7,0 | 3,4 | 29,0 | Anfrage | |
| 1014630 | 7,0 | 3,4 | 30,0 | Anfrage | |
| 1014631 | 7,0 | 3,4 | 31,0 | Anfrage | |
| 1014632 | 7,0 | 3,4 | 32,0 | Anfrage | |
| 1014633 | 7,0 | 3,4 | 33,0 | Anfrage | |
| 1014634 | 7,0 | 3,4 | 34,0 | Anfrage | |
| 1014635 | 7,0 | 3,4 | 35,0 | Anfrage | |
| 1014636 | 7,0 | 3,4 | 36,0 | Anfrage | |
| 1014637 | 7,0 | 3,4 | 37,0 | Anfrage | |
| 1014638 | 7,0 | 3,4 | 38,0 | Anfrage | |
| 1014639 | 7,0 | 3,4 | 39,0 | Anfrage | |
| 1014640 | 7,0 | 3,4 | 40,0 | Anfrage | |
| 1014641 | 7,0 | 3,4 | 41,0 | Anfrage | |
| 1014642 | 7,0 | 3,4 | 42,0 | Anfrage | |
| 1014643 | 7,0 | 3,4 | 43,0 | Anfrage | |
| 1014644 | 7,0 | 3,4 | 44,0 | Anfrage | |
| 1014645 | 7,0 | 3,4 | 45,0 | Anfrage | |
| 1014646 | 7,0 | 3,4 | 46,0 | Anfrage | |
| 1014647 | 7,0 | 3,4 | 47,0 | Anfrage | |
| 1014648 | 7,0 | 3,4 | 48,0 | Anfrage | |
| 1014649 | 7,0 | 3,4 | 49,0 | Anfrage | |
| 1014650 | 7,0 | 3,4 | 50,0 | Anfrage | |
| 1014651 | 7,0 | 3,4 | 51,0 | Anfrage | |
| 1014652 | 7,0 | 3,4 | 52,0 | Anfrage | |
| 1014653 | 7,0 | 3,4 | 53,0 | Anfrage | |
| 1014654 | 7,0 | 3,4 | 54,0 | Anfrage | |
| 1014655 | 7,0 | 3,4 | 55,0 | Anfrage | |
| 1014656 | 7,0 | 3,4 | 56,0 | Anfrage | |
| 1014657 | 7,0 | 3,4 | 57,0 | Anfrage | |
| 1014658 | 7,0 | 3,4 | 58,0 | Anfrage | |
| 1014659 | 7,0 | 3,4 | 59,0 | Anfrage | |
| 1014660 | 7,0 | 3,4 | 60,0 | Anfrage |
Art.-Nr. 101 13 XX Außen-Ø = 7,0mm Innen-Ø = 4,5mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1011302 | 7,0 | 4,5 | 2,0 | Anfrage | |
| 1011303 | 7,0 | 4,5 | 3,0 | Anfrage | |
| 1011304 | 7,0 | 4,5 | 4,0 | Anfrage | |
| 1011305 | 7,0 | 4,5 | 5,0 | Anfrage | |
| 1011306 | 7,0 | 4,5 | 6,0 | Anfrage | |
| 1011307 | 7,0 | 4,5 | 7,0 | Anfrage | |
| 1011308 | 7,0 | 4,5 | 8,0 | Anfrage | |
| 1011309 | 7,0 | 4,5 | 9,0 | Anfrage | |
| 1011310 | 7,0 | 4,5 | 10,0 | Anfrage | |
| 1011311 | 7,0 | 4,5 | 11,0 | Anfrage | |
| 1011312 | 7,0 | 4,5 | 12,0 | Anfrage | |
| 1011313 | 7,0 | 4,5 | 13,0 | Anfrage | |
| 1011314 | 7,0 | 4,5 | 14,0 | Anfrage | |
| 1011315 | 7,0 | 4,5 | 15,0 | Anfrage | |
| 1011316 | 7,0 | 4,5 | 16,0 | Anfrage | |
| 1011317 | 7,0 | 4,5 | 17,0 | Anfrage | |
| 1011318 | 7,0 | 4,5 | 18,0 | Anfrage | |
| 1011319 | 7,0 | 4,5 | 19,0 | Anfrage | |
| 1011320 | 7,0 | 4,5 | 20,0 | Anfrage | |
| 1011321 | 7,0 | 4,5 | 21,0 | Anfrage | |
| 1011322 | 7,0 | 4,5 | 22,0 | Anfrage | |
| 1011323 | 7,0 | 4,5 | 23,0 | Anfrage | |
| 1011324 | 7,0 | 4,5 | 24,0 | Anfrage | |
| 1011325 | 7,0 | 4,5 | 25,0 | Anfrage | |
| 1011326 | 7,0 | 4,5 | 26,0 | Anfrage | |
| 1011327 | 7,0 | 4,5 | 27,0 | Anfrage | |
| 1011328 | 7,0 | 4,5 | 28,0 | Anfrage | |
| 1011329 | 7,0 | 4,5 | 29,0 | Anfrage | |
| 1011330 | 7,0 | 4,5 | 30,0 | Anfrage | |
| 1011331 | 7,0 | 4,5 | 31,0 | Anfrage | |
| 1011332 | 7,0 | 4,5 | 32,0 | Anfrage | |
| 1011333 | 7,0 | 4,5 | 33,0 | Anfrage | |
| 1011334 | 7,0 | 4,5 | 34,0 | Anfrage | |
| 1011335 | 7,0 | 4,5 | 35,0 | Anfrage | |
| 1011336 | 7,0 | 4,5 | 36,0 | Anfrage | |
| 1011337 | 7,0 | 4,5 | 37,0 | Anfrage | |
| 1011338 | 7,0 | 4,5 | 38,0 | Anfrage | |
| 1011339 | 7,0 | 4,5 | 39,0 | Anfrage | |
| 1011340 | 7,0 | 4,5 | 40,0 | Anfrage | |
| 1011341 | 7,0 | 4,5 | 41,0 | Anfrage | |
| 1011342 | 7,0 | 4,5 | 42,0 | Anfrage | |
| 1011343 | 7,0 | 4,5 | 43,0 | Anfrage | |
| 1011344 | 7,0 | 4,5 | 44,0 | Anfrage | |
| 1011345 | 7,0 | 4,5 | 45,0 | Anfrage | |
| 1011346 | 7,0 | 4,5 | 46,0 | Anfrage | |
| 1011347 | 7,0 | 4,5 | 47,0 | Anfrage | |
| 1011348 | 7,0 | 4,5 | 48,0 | Anfrage | |
| 1011349 | 7,0 | 4,5 | 49,0 | Anfrage | |
| 1011350 | 7,0 | 4,5 | 50,0 | Anfrage | |
| 1011351 | 7,0 | 4,5 | 51,0 | Anfrage | |
| 1011352 | 7,0 | 4,5 | 52,0 | Anfrage | |
| 1011353 | 7,0 | 4,5 | 53,0 | Anfrage | |
| 1011354 | 7,0 | 4,5 | 54,0 | Anfrage | |
| 1011355 | 7,0 | 4,5 | 55,0 | Anfrage | |
| 1011356 | 7,0 | 4,5 | 56,0 | Anfrage | |
| 1011357 | 7,0 | 4,5 | 57,0 | Anfrage | |
| 1011358 | 7,0 | 4,5 | 58,0 | Anfrage | |
| 1011359 | 7,0 | 4,5 | 59,0 | Anfrage | |
| 1011360 | 7,0 | 4,5 | 60,0 | Anfrage |
Art.-Nr. 101 53 XX Außen-Ø = 7,0mm Innen-Ø = 5,0mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1015302 | 7,0 | 5,0 | 2,0 | Anfrage | |
| 1015303 | 7,0 | 5,0 | 3,0 | Anfrage | |
| 1015304 | 7,0 | 5,0 | 4,0 | Anfrage | |
| 1015305 | 7,0 | 5,0 | 5,0 | Anfrage | |
| 1015306 | 7,0 | 5,0 | 6,0 | Anfrage | |
| 1015307 | 7,0 | 5,0 | 7,0 | Anfrage | |
| 1015308 | 7,0 | 5,0 | 8,0 | Anfrage | |
| 1015309 | 7,0 | 5,0 | 9,0 | Anfrage | |
| 1015310 | 7,0 | 5,0 | 10,0 | Anfrage | |
| 1015311 | 7,0 | 5,0 | 11,0 | Anfrage | |
| 1015312 | 7,0 | 5,0 | 12,0 | Anfrage | |
| 1015313 | 7,0 | 5,0 | 13,0 | Anfrage | |
| 1015314 | 7,0 | 5,0 | 14,0 | Anfrage | |
| 1015315 | 7,0 | 5,0 | 15,0 | Anfrage | |
| 1015316 | 7,0 | 5,0 | 16,0 | Anfrage | |
| 1015317 | 7,0 | 5,0 | 17,0 | Anfrage | |
| 1015318 | 7,0 | 5,0 | 18,0 | Anfrage | |
| 1015319 | 7,0 | 5,0 | 19,0 | Anfrage | |
| 1015320 | 7,0 | 5,0 | 20,0 | Anfrage | |
| 1015321 | 7,0 | 5,0 | 21,0 | Anfrage | |
| 1015322 | 7,0 | 5,0 | 22,0 | Anfrage | |
| 1015323 | 7,0 | 5,0 | 23,0 | Anfrage | |
| 1015324 | 7,0 | 5,0 | 24,0 | Anfrage | |
| 1015325 | 7,0 | 5,0 | 25,0 | Anfrage | |
| 1015326 | 7,0 | 5,0 | 26,0 | Anfrage | |
| 1015327 | 7,0 | 5,0 | 27,0 | Anfrage | |
| 1015328 | 7,0 | 5,0 | 28,0 | Anfrage | |
| 1015329 | 7,0 | 5,0 | 29,0 | Anfrage | |
| 1015330 | 7,0 | 5,0 | 30,0 | Anfrage | |
| 1015331 | 7,0 | 5,0 | 31,0 | Anfrage | |
| 1015332 | 7,0 | 5,0 | 32,0 | Anfrage | |
| 1015333 | 7,0 | 5,0 | 33,0 | Anfrage | |
| 1015334 | 7,0 | 5,0 | 34,0 | Anfrage | |
| 1015335 | 7,0 | 5,0 | 35,0 | Anfrage | |
| 1015336 | 7,0 | 5,0 | 36,0 | Anfrage | |
| 1015337 | 7,0 | 5,0 | 37,0 | Anfrage | |
| 1015338 | 7,0 | 5,0 | 38,0 | Anfrage | |
| 1015339 | 7,0 | 5,0 | 39,0 | Anfrage | |
| 1015340 | 7,0 | 5,0 | 40,0 | Anfrage | |
| 1015341 | 7,0 | 5,0 | 41,0 | Anfrage | |
| 1015342 | 7,0 | 5,0 | 42,0 | Anfrage | |
| 1015343 | 7,0 | 5,0 | 43,0 | Anfrage | |
| 1015344 | 7,0 | 5,0 | 44,0 | Anfrage | |
| 1015345 | 7,0 | 5,0 | 45,0 | Anfrage | |
| 1015346 | 7,0 | 5,0 | 46,0 | Anfrage | |
| 1015347 | 7,0 | 5,0 | 47,0 | Anfrage | |
| 1015348 | 7,0 | 5,0 | 48,0 | Anfrage | |
| 1015349 | 7,0 | 5,0 | 49,0 | Anfrage | |
| 1015350 | 7,0 | 5,0 | 50,0 | Anfrage | |
| 1015351 | 7,0 | 5,0 | 51,0 | Anfrage | |
| 1015352 | 7,0 | 5,0 | 52,0 | Anfrage | |
| 1015353 | 7,0 | 5,0 | 53,0 | Anfrage |
Art.-Nr. 101 22 XX Außen-Ø = 8,0mm Innen-Ø = 4,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1012202 | 8,0 | 4,2 | 2,0 | Anfrage | |
| 1012203 | 8,0 | 4,2 | 3,0 | Anfrage | |
| 1012204 | 8,0 | 4,2 | 4,0 | Anfrage | |
| 1012205 | 8,0 | 4,2 | 5,0 | Anfrage | |
| 1012206 | 8,0 | 4,2 | 6,0 | Anfrage | |
| 1012207 | 8,0 | 4,2 | 7,0 | Anfrage | |
| 1012208 | 8,0 | 4,2 | 8,0 | Anfrage | |
| 1012209 | 8,0 | 4,2 | 9,0 | Anfrage | |
| 1012210 | 8,0 | 4,2 | 10,0 | Anfrage | |
| 1012211 | 8,0 | 4,2 | 11,0 | Anfrage | |
| 1012212 | 8,0 | 4,2 | 12,0 | Anfrage | |
| 1012213 | 8,0 | 4,2 | 13,0 | Anfrage | |
| 1012214 | 8,0 | 4,2 | 14,0 | Anfrage | |
| 1012215 | 8,0 | 4,2 | 15,0 | Anfrage | |
| 1012216 | 8,0 | 4,2 | 16,0 | Anfrage | |
| 1012217 | 8,0 | 4,2 | 17,0 | Anfrage | |
| 1012218 | 8,0 | 4,2 | 18,0 | Anfrage | |
| 1012219 | 8,0 | 4,2 | 19,0 | Anfrage | |
| 1012220 | 8,0 | 4,2 | 20,0 | Anfrage | |
| 1012221 | 8,0 | 4,2 | 21,0 | Anfrage | |
| 1012222 | 8,0 | 4,2 | 22,0 | Anfrage | |
| 1012223 | 8,0 | 4,2 | 23,0 | Anfrage | |
| 1012224 | 8,0 | 4,2 | 24,0 | Anfrage | |
| 1012225 | 8,0 | 4,2 | 25,0 | Anfrage | |
| 1012226 | 8,0 | 4,2 | 26,0 | Anfrage | |
| 1012227 | 8,0 | 4,2 | 27,0 | Anfrage | |
| 1012228 | 8,0 | 4,2 | 28,0 | Anfrage | |
| 1012229 | 8,0 | 4,2 | 29,0 | Anfrage | |
| 1012230 | 8,0 | 4,2 | 30,0 | Anfrage | |
| 1012231 | 8,0 | 4,2 | 31,0 | Anfrage | |
| 1012232 | 8,0 | 4,2 | 32,0 | Anfrage | |
| 1012233 | 8,0 | 4,2 | 33,0 | Anfrage | |
| 1012234 | 8,0 | 4,2 | 34,0 | Anfrage | |
| 1012235 | 8,0 | 4,2 | 35,0 | Anfrage | |
| 1012236 | 8,0 | 4,2 | 36,0 | Anfrage | |
| 1012237 | 8,0 | 4,2 | 37,0 | Anfrage | |
| 1012238 | 8,0 | 4,2 | 38,0 | Anfrage | |
| 1012239 | 8,0 | 4,2 | 39,0 | Anfrage | |
| 1012240 | 8,0 | 4,2 | 40,0 | Anfrage | |
| 1012241 | 8,0 | 4,2 | 41,0 | Anfrage | |
| 1012242 | 8,0 | 4,2 | 42,0 | Anfrage | |
| 1012243 | 8,0 | 4,2 | 43,0 | Anfrage | |
| 1012244 | 8,0 | 4,2 | 44,0 | Anfrage | |
| 1012245 | 8,0 | 4,2 | 45,0 | Anfrage | |
| 1012246 | 8,0 | 4,2 | 46,0 | Anfrage | |
| 1012247 | 8,0 | 4,2 | 47,0 | Anfrage | |
| 1012248 | 8,0 | 4,2 | 48,0 | Anfrage | |
| 1012249 | 8,0 | 4,2 | 49,0 | Anfrage | |
| 1012250 | 8,0 | 4,2 | 50,0 | Anfrage | |
| 1012251 | 8,0 | 4,2 | 51,0 | Anfrage | |
| 1012252 | 8,0 | 4,2 | 52,0 | Anfrage | |
| 1012253 | 8,0 | 4,2 | 53,0 | Anfrage | |
| 1012254 | 8,0 | 4,2 | 54,0 | Anfrage | |
| 1012255 | 8,0 | 4,2 | 55,0 | Anfrage | |
| 1012256 | 8,0 | 4,2 | 56,0 | Anfrage | |
| 1012257 | 8,0 | 4,2 | 57,0 | Anfrage | |
| 1012258 | 8,0 | 4,2 | 58,0 | Anfrage | |
| 1012259 | 8,0 | 4,2 | 59,0 | Anfrage | |
| 1012260 | 8,0 | 4,2 | 60,0 | Anfrage |
Art.-Nr. 101 69 XX Außen-Ø = 8,0mm Innen-Ø = 5,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1016902 | 8,0 | 5,2 | 2,0 | Anfrage | |
| 1016903 | 8,0 | 5,2 | 3,0 | Anfrage | |
| 1016904 | 8,0 | 5,2 | 4,0 | Anfrage | |
| 1016905 | 8,0 | 5,2 | 5,0 | Anfrage | |
| 1016906 | 8,0 | 5,2 | 6,0 | Anfrage | |
| 1016907 | 8,0 | 5,2 | 7,0 | Anfrage | |
| 1016908 | 8,0 | 5,2 | 8,0 | Anfrage | |
| 1016909 | 8,0 | 5,2 | 9,0 | Anfrage | |
| 1016910 | 8,0 | 5,2 | 10,0 | Anfrage | |
| 1016911 | 8,0 | 5,2 | 11,0 | Anfrage | |
| 1016912 | 8,0 | 5,2 | 12,0 | Anfrage | |
| 1016913 | 8,0 | 5,2 | 13,0 | Anfrage | |
| 1016914 | 8,0 | 5,2 | 14,0 | Anfrage | |
| 1016915 | 8,0 | 5,2 | 15,0 | Anfrage | |
| 1016916 | 8,0 | 5,2 | 16,0 | Anfrage | |
| 1016917 | 8,0 | 5,2 | 17,0 | Anfrage | |
| 1016918 | 8,0 | 5,2 | 18,0 | Anfrage | |
| 1016919 | 8,0 | 5,2 | 19,0 | Anfrage | |
| 1016920 | 8,0 | 5,2 | 20,0 | Anfrage | |
| 1016921 | 8,0 | 5,2 | 21,0 | Anfrage | |
| 1016922 | 8,0 | 5,2 | 22,0 | Anfrage | |
| 1016923 | 8,0 | 5,2 | 23,0 | Anfrage | |
| 1016924 | 8,0 | 5,2 | 24,0 | Anfrage | |
| 1016925 | 8,0 | 5,2 | 25,0 | Anfrage | |
| 1016926 | 8,0 | 5,2 | 26,0 | Anfrage | |
| 1016927 | 8,0 | 5,2 | 27,0 | Anfrage | |
| 1016928 | 8,0 | 5,2 | 28,0 | Anfrage | |
| 1016929 | 8,0 | 5,2 | 29,0 | Anfrage | |
| 1016930 | 8,0 | 5,2 | 30,0 | Anfrage | |
| 1016931 | 8,0 | 5,2 | 31,0 | Anfrage | |
| 1016932 | 8,0 | 5,2 | 32,0 | Anfrage | |
| 1016933 | 8,0 | 5,2 | 33,0 | Anfrage | |
| 1016934 | 8,0 | 5,2 | 34,0 | Anfrage | |
| 1016935 | 8,0 | 5,2 | 35,0 | Anfrage | |
| 1016936 | 8,0 | 5,2 | 36,0 | Anfrage | |
| 1016937 | 8,0 | 5,2 | 37,0 | Anfrage | |
| 1016938 | 8,0 | 5,2 | 38,0 | Anfrage | |
| 1016939 | 8,0 | 5,2 | 39,0 | Anfrage | |
| 1016940 | 8,0 | 5,2 | 40,0 | Anfrage | |
| 1016941 | 8,0 | 5,2 | 41,0 | Anfrage | |
| 1016942 | 8,0 | 5,2 | 42,0 | Anfrage | |
| 1016943 | 8,0 | 5,2 | 43,0 | Anfrage | |
| 1016944 | 8,0 | 5,2 | 44,0 | Anfrage | |
| 1016945 | 8,0 | 5,2 | 45,0 | Anfrage | |
| 1016946 | 8,0 | 5,2 | 46,0 | Anfrage | |
| 1016947 | 8,0 | 5,2 | 47,0 | Anfrage | |
| 1016948 | 8,0 | 5,2 | 48,0 | Anfrage | |
| 1016949 | 8,0 | 5,2 | 49,0 | Anfrage | |
| 1016950 | 8,0 | 5,2 | 50,0 | Anfrage | |
| 1016951 | 8,0 | 5,2 | 51,0 | Anfrage | |
| 1016952 | 8,0 | 5,2 | 52,0 | Anfrage | |
| 1016953 | 8,0 | 5,2 | 53,0 | Anfrage | |
| 1016954 | 8,0 | 5,2 | 54,0 | Anfrage | |
| 1016955 | 8,0 | 5,2 | 55,0 | Anfrage | |
| 1016956 | 8,0 | 5,2 | 56,0 | Anfrage | |
| 1016957 | 8,0 | 5,2 | 57,0 | Anfrage | |
| 1016958 | 8,0 | 5,2 | 58,0 | Anfrage | |
| 1016959 | 8,0 | 5,2 | 59,0 | Anfrage | |
| 1016960 | 8,0 | 5,2 | 60,0 | Anfrage |
Art.-Nr. 101 65 XX Außen-Ø = 10,0mm Innen-Ø = 3,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1016502 | 10,0 | 3,2 | 2,0 | Anfrage | |
| 1016503 | 10,0 | 3,2 | 3,0 | Anfrage | |
| 1016504 | 10,0 | 3,2 | 4,0 | Anfrage | |
| 1016505 | 10,0 | 3,2 | 5,0 | Anfrage | |
| 1016506 | 10,0 | 3,2 | 6,0 | Anfrage | |
| 1016507 | 10,0 | 3,2 | 7,0 | Anfrage | |
| 1016508 | 10,0 | 3,2 | 8,0 | Anfrage | |
| 1016509 | 10,0 | 3,2 | 9,0 | Anfrage | |
| 1016510 | 10,0 | 3,2 | 10,0 | Anfrage | |
| 1016511 | 10,0 | 3,2 | 11,0 | Anfrage | |
| 1016512 | 10,0 | 3,2 | 12,0 | Anfrage | |
| 1016513 | 10,0 | 3,2 | 13,0 | Anfrage | |
| 1016514 | 10,0 | 3,2 | 14,0 | Anfrage | |
| 1016515 | 10,0 | 3,2 | 15,0 | Anfrage | |
| 1016516 | 10,0 | 3,2 | 16,0 | Anfrage | |
| 1016517 | 10,0 | 3,2 | 17,0 | Anfrage | |
| 1016518 | 10,0 | 3,2 | 18,0 | Anfrage | |
| 1016519 | 10,0 | 3,2 | 19,0 | Anfrage | |
| 1016520 | 10,0 | 3,2 | 20,0 | Anfrage |
Art.-Nr. 101 14 XX Außen-Ø = 10,0mm Innen-Ø = 5,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1011402 | 10,0 | 5,2 | 2,0 | Anfrage | |
| 1011403 | 10,0 | 5,2 | 3,0 | Anfrage | |
| 1011404 | 10,0 | 5,2 | 4,0 | Anfrage | |
| 1011405 | 10,0 | 5,2 | 5,0 | Anfrage | |
| 1011406 | 10,0 | 5,2 | 6,0 | Anfrage | |
| 1011407 | 10,0 | 5,2 | 7,0 | Anfrage | |
| 1011408 | 10,0 | 5,2 | 8,0 | Anfrage | |
| 1011409 | 10,0 | 5,2 | 9,0 | Anfrage | |
| 1011410 | 10,0 | 5,2 | 10,0 | Anfrage | |
| 1011411 | 10,0 | 5,2 | 11,0 | Anfrage | |
| 1011412 | 10,0 | 5,2 | 12,0 | Anfrage | |
| 1011413 | 10,0 | 5,2 | 13,0 | Anfrage | |
| 1011414 | 10,0 | 5,2 | 14,0 | Anfrage | |
| 1011415 | 10,0 | 5,2 | 15,0 | Anfrage | |
| 1011416 | 10,0 | 5,2 | 16,0 | Anfrage | |
| 1011417 | 10,0 | 5,2 | 17,0 | Anfrage | |
| 1011418 | 10,0 | 5,2 | 18,0 | Anfrage | |
| 1011419 | 10,0 | 5,2 | 19,0 | Anfrage | |
| 1011420 | 10,0 | 5,2 | 20,0 | Anfrage | |
| 1011421 | 10,0 | 5,2 | 21,0 | Anfrage | |
| 1011422 | 10,0 | 5,2 | 22,0 | Anfrage | |
| 1011423 | 10,0 | 5,2 | 23,0 | Anfrage | |
| 1011424 | 10,0 | 5,2 | 24,0 | Anfrage | |
| 1011425 | 10,0 | 5,2 | 25,0 | Anfrage | |
| 1011426 | 10,0 | 5,2 | 26,0 | Anfrage | |
| 1011427 | 10,0 | 5,2 | 27,0 | Anfrage | |
| 1011428 | 10,0 | 5,2 | 28,0 | Anfrage | |
| 1011429 | 10,0 | 5,2 | 29,0 | Anfrage | |
| 1011430 | 10,0 | 5,2 | 30,0 | Anfrage | |
| 1011431 | 10,0 | 5,2 | 31,0 | Anfrage | |
| 1011432 | 10,0 | 5,2 | 32,0 | Anfrage | |
| 1011433 | 10,0 | 5,2 | 33,0 | Anfrage | |
| 1011434 | 10,0 | 5,2 | 34,0 | Anfrage | |
| 1011435 | 10,0 | 5,2 | 35,0 | Anfrage | |
| 1011436 | 10,0 | 5,2 | 36,0 | Anfrage | |
| 1011437 | 10,0 | 5,2 | 37,0 | Anfrage | |
| 1011438 | 10,0 | 5,2 | 38,0 | Anfrage | |
| 1011439 | 10,0 | 5,2 | 39,0 | Anfrage | |
| 1011440 | 10,0 | 5,2 | 40,0 | Anfrage | |
| 1011441 | 10,0 | 5,2 | 41,0 | Anfrage | |
| 1011442 | 10,0 | 5,2 | 42,0 | Anfrage | |
| 1011443 | 10,0 | 5,2 | 43,0 | Anfrage | |
| 1011444 | 10,0 | 5,2 | 44,0 | Anfrage | |
| 1011445 | 10,0 | 5,2 | 45,0 | Anfrage | |
| 1011446 | 10,0 | 5,2 | 46,0 | Anfrage | |
| 1011447 | 10,0 | 5,2 | 47,0 | Anfrage | |
| 1011448 | 10,0 | 5,2 | 48,0 | Anfrage | |
| 1011449 | 10,0 | 5,2 | 49,0 | Anfrage | |
| 1011450 | 10,0 | 5,2 | 50,0 | Anfrage | |
| 1011451 | 10,0 | 5,2 | 51,0 | Anfrage | |
| 1011452 | 10,0 | 5,2 | 52,0 | Anfrage | |
| 1011453 | 10,0 | 5,2 | 53,0 | Anfrage | |
| 1011454 | 10,0 | 5,2 | 54,0 | Anfrage | |
| 1011455 | 10,0 | 5,2 | 55,0 | Anfrage | |
| 1011456 | 10,0 | 5,2 | 56,0 | Anfrage | |
| 1011457 | 10,0 | 5,2 | 57,0 | Anfrage |
Art.-Nr. 101 09 XX Außen-Ø = 10,0mm Innen-Ø = 6,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1010902 | 10,0 | 6,2 | 2,0 | Anfrage | |
| 1010903 | 10,0 | 6,2 | 3,0 | Anfrage | |
| 1010904 | 10,0 | 6,2 | 4,0 | Anfrage | |
| 1010905 | 10,0 | 6,2 | 5,0 | Anfrage | |
| 1010906 | 10,0 | 6,2 | 6,0 | Anfrage | |
| 1010907 | 10,0 | 6,2 | 7,0 | Anfrage | |
| 1010908 | 10,0 | 6,2 | 8,0 | Anfrage | |
| 1010909 | 10,0 | 6,2 | 9,0 | Anfrage | |
| 1010910 | 10,0 | 6,2 | 10,0 | Anfrage | |
| 1010911 | 10,0 | 6,2 | 11,0 | Anfrage | |
| 1010912 | 10,0 | 6,2 | 12,0 | Anfrage | |
| 1010913 | 10,0 | 6,2 | 13,0 | Anfrage | |
| 1010914 | 10,0 | 6,2 | 14,0 | Anfrage | |
| 1010915 | 10,0 | 6,2 | 15,0 | Anfrage | |
| 1010916 | 10,0 | 6,2 | 16,0 | Anfrage | |
| 1010917 | 10,0 | 6,2 | 17,0 | Anfrage | |
| 1010918 | 10,0 | 6,2 | 18,0 | Anfrage | |
| 1010919 | 10,0 | 6,2 | 19,0 | Anfrage | |
| 1010920 | 10,0 | 6,2 | 20,0 | Anfrage | |
| 1010921 | 10,0 | 6,2 | 21,0 | Anfrage | |
| 1010922 | 10,0 | 6,2 | 22,0 | Anfrage | |
| 1010923 | 10,0 | 6,2 | 23,0 | Anfrage | |
| 1010924 | 10,0 | 6,2 | 24,0 | Anfrage | |
| 1010925 | 10,0 | 6,2 | 25,0 | Anfrage | |
| 1010926 | 10,0 | 6,2 | 26,0 | Anfrage | |
| 1010927 | 10,0 | 6,2 | 27,0 | Anfrage | |
| 1010928 | 10,0 | 6,2 | 28,0 | Anfrage | |
| 1010929 | 10,0 | 6,2 | 29,0 | Anfrage | |
| 1010930 | 10,0 | 6,2 | 30,0 | Anfrage | |
| 1010931 | 10,0 | 6,2 | 31,0 | Anfrage | |
| 1010932 | 10,0 | 6,2 | 32,0 | Anfrage | |
| 1010933 | 10,0 | 6,2 | 33,0 | Anfrage | |
| 1010934 | 10,0 | 6,2 | 34,0 | Anfrage | |
| 1010935 | 10,0 | 6,2 | 35,0 | Anfrage | |
| 1010936 | 10,0 | 6,2 | 36,0 | Anfrage | |
| 1010937 | 10,0 | 6,2 | 37,0 | Anfrage | |
| 1010938 | 10,0 | 6,2 | 38,0 | Anfrage | |
| 1010939 | 10,0 | 6,2 | 39,0 | Anfrage | |
| 1010940 | 10,0 | 6,2 | 40,0 | Anfrage | |
| 1010941 | 10,0 | 6,2 | 41,0 | Anfrage | |
| 1010942 | 10,0 | 6,2 | 42,0 | Anfrage | |
| 1010943 | 10,0 | 6,2 | 43,0 | Anfrage | |
| 1010944 | 10,0 | 6,2 | 44,0 | Anfrage | |
| 1010945 | 10,0 | 6,2 | 45,0 | Anfrage | |
| 1010946 | 10,0 | 6,2 | 46,0 | Anfrage | |
| 1010947 | 10,0 | 6,2 | 47,0 | Anfrage | |
| 1010948 | 10,0 | 6,2 | 48,0 | Anfrage | |
| 1010949 | 10,0 | 6,2 | 49,0 | Anfrage | |
| 1010950 | 10,0 | 6,2 | 50,0 | Anfrage | |
| 1010951 | 10,0 | 6,2 | 51,0 | Anfrage | |
| 1010952 | 10,0 | 6,2 | 52,0 | Anfrage | |
| 1010953 | 10,0 | 6,2 | 53,0 | Anfrage | |
| 1010954 | 10,0 | 6,2 | 54,0 | Anfrage | |
| 1010955 | 10,0 | 6,2 | 55,0 | Anfrage |
Art.-Nr. 101 58 XX Außen-Ø = 12,0mm Innen-Ø = 5,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1015802 | 12,0 | 5,2 | 2,0 | Anfrage | |
| 1015803 | 12,0 | 5,2 | 3,0 | Anfrage | |
| 1015804 | 12,0 | 5,2 | 4,0 | Anfrage | |
| 1015805 | 12,0 | 5,2 | 5,0 | Anfrage | |
| 1015806 | 12,0 | 5,2 | 6,0 | Anfrage | |
| 1015807 | 12,0 | 5,2 | 7,0 | Anfrage | |
| 1015808 | 12,0 | 5,2 | 8,0 | Anfrage | |
| 1015809 | 12,0 | 5,2 | 9,0 | Anfrage | |
| 1015810 | 12,0 | 5,2 | 10,0 | Anfrage | |
| 1015811 | 12,0 | 5,2 | 11,0 | Anfrage | |
| 1015812 | 12,0 | 5,2 | 12,0 | Anfrage | |
| 1015813 | 12,0 | 5,2 | 13,0 | Anfrage | |
| 1015814 | 12,0 | 5,2 | 14,0 | Anfrage | |
| 1015815 | 12,0 | 5,2 | 15,0 | Anfrage | |
| 1015816 | 12,0 | 5,2 | 16,0 | Anfrage | |
| 1015817 | 12,0 | 5,2 | 17,0 | Anfrage | |
| 1015818 | 12,0 | 5,2 | 18,0 | Anfrage | |
| 1015819 | 12,0 | 5,2 | 19,0 | Anfrage | |
| 1015820 | 12,0 | 5,2 | 20,0 | Anfrage | |
| 1015821 | 12,0 | 5,2 | 21,0 | Anfrage | |
| 1015822 | 12,0 | 5,2 | 22,0 | Anfrage | |
| 1015823 | 12,0 | 5,2 | 23,0 | Anfrage | |
| 1015824 | 12,0 | 5,2 | 24,0 | Anfrage | |
| 1015825 | 12,0 | 5,2 | 25,0 | Anfrage | |
| 1015826 | 12,0 | 5,2 | 26,0 | Anfrage | |
| 1015827 | 12,0 | 5,2 | 27,0 | Anfrage | |
| 1015828 | 12,0 | 5,2 | 28,0 | Anfrage | |
| 1015829 | 12,0 | 5,2 | 29,0 | Anfrage | |
| 1015830 | 12,0 | 5,2 | 30,0 | Anfrage | |
| 1015831 | 12,0 | 5,2 | 31,0 | Anfrage | |
| 1015832 | 12,0 | 5,2 | 32,0 | Anfrage | |
| 1015833 | 12,0 | 5,2 | 33,0 | Anfrage | |
| 1015834 | 12,0 | 5,2 | 34,0 | Anfrage | |
| 1015835 | 12,0 | 5,2 | 35,0 | Anfrage | |
| 1015836 | 12,0 | 5,2 | 36,0 | Anfrage | |
| 1015837 | 12,0 | 5,2 | 37,0 | Anfrage | |
| 1015838 | 12,0 | 5,2 | 38,0 | Anfrage | |
| 1015839 | 12,0 | 5,2 | 39,0 | Anfrage | |
| 1015840 | 12,0 | 5,2 | 40,0 | Anfrage | |
| 1015841 | 12,0 | 5,2 | 41,0 | Anfrage | |
| 1015842 | 12,0 | 5,2 | 42,0 | Anfrage | |
| 1015843 | 12,0 | 5,2 | 43,0 | Anfrage | |
| 1015844 | 12,0 | 5,2 | 44,0 | Anfrage | |
| 1015845 | 12,0 | 5,2 | 45,0 | Anfrage | |
| 1015846 | 12,0 | 5,2 | 46,0 | Anfrage | |
| 1015847 | 12,0 | 5,2 | 47,0 | Anfrage | |
| 1015848 | 12,0 | 5,2 | 48,0 | Anfrage | |
| 1015849 | 12,0 | 5,2 | 49,0 | Anfrage | |
| 1015850 | 12,0 | 5,2 | 50,0 | Anfrage | |
| 1015851 | 12,0 | 5,2 | 51,0 | Anfrage | |
| 1015852 | 12,0 | 5,2 | 52,0 | Anfrage | |
| 1015853 | 12,0 | 5,2 | 53,0 | Anfrage | |
| 1015854 | 12,0 | 5,2 | 54,0 | Anfrage | |
| 1015855 | 12,0 | 5,2 | 55,0 | Anfrage | |
| 1015856 | 12,0 | 5,2 | 56,0 | Anfrage | |
| 1015857 | 12,0 | 5,2 | 57,0 | Anfrage | |
| 1015858 | 12,0 | 5,2 | 58,0 | Anfrage |
Art.-Nr. 101 26 XX Außen-Ø = 12,0mm Innen-Ø = 6,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1012602 | 12,0 | 6,2 | 2,0 | Anfrage | |
| 1012603 | 12,0 | 6,2 | 3,0 | Anfrage | |
| 1012604 | 12,0 | 6,2 | 4,0 | Anfrage | |
| 1012605 | 12,0 | 6,2 | 5,0 | Anfrage | |
| 1012606 | 12,0 | 6,2 | 6,0 | Anfrage | |
| 1012607 | 12,0 | 6,2 | 7,0 | Anfrage | |
| 1012608 | 12,0 | 6,2 | 8,0 | Anfrage | |
| 1012609 | 12,0 | 6,2 | 9,0 | Anfrage | |
| 1012610 | 12,0 | 6,2 | 10,0 | Anfrage | |
| 1012611 | 12,0 | 6,2 | 11,0 | Anfrage | |
| 1012612 | 12,0 | 6,2 | 12,0 | Anfrage | |
| 1012613 | 12,0 | 6,2 | 13,0 | Anfrage | |
| 1012614 | 12,0 | 6,2 | 14,0 | Anfrage | |
| 1012615 | 12,0 | 6,2 | 15,0 | Anfrage | |
| 1012616 | 12,0 | 6,2 | 16,0 | Anfrage | |
| 1012617 | 12,0 | 6,2 | 17,0 | Anfrage | |
| 1012618 | 12,0 | 6,2 | 18,0 | Anfrage | |
| 1012619 | 12,0 | 6,2 | 19,0 | Anfrage | |
| 1012620 | 12,0 | 6,2 | 20,0 | Anfrage | |
| 1012621 | 12,0 | 6,2 | 21,0 | Anfrage | |
| 1012622 | 12,0 | 6,2 | 22,0 | Anfrage | |
| 1012623 | 12,0 | 6,2 | 23,0 | Anfrage | |
| 1012624 | 12,0 | 6,2 | 24,0 | Anfrage | |
| 1012625 | 12,0 | 6,2 | 25,0 | Anfrage | |
| 1012626 | 12,0 | 6,2 | 26,0 | Anfrage | |
| 1012627 | 12,0 | 6,2 | 27,0 | Anfrage | |
| 1012628 | 12,0 | 6,2 | 28,0 | Anfrage | |
| 1012629 | 12,0 | 6,2 | 29,0 | Anfrage | |
| 1012630 | 12,0 | 6,2 | 30,0 | Anfrage | |
| 1012631 | 12,0 | 6,2 | 31,0 | Anfrage | |
| 1012632 | 12,0 | 6,2 | 32,0 | Anfrage | |
| 1012633 | 12,0 | 6,2 | 33,0 | Anfrage | |
| 1012634 | 12,0 | 6,2 | 34,0 | Anfrage | |
| 1012635 | 12,0 | 6,2 | 35,0 | Anfrage | |
| 1012636 | 12,0 | 6,2 | 36,0 | Anfrage | |
| 1012637 | 12,0 | 6,2 | 37,0 | Anfrage | |
| 1012638 | 12,0 | 6,2 | 38,0 | Anfrage | |
| 1012639 | 12,0 | 6,2 | 39,0 | Anfrage | |
| 1012640 | 12,0 | 6,2 | 40,0 | Anfrage | |
| 1012641 | 12,0 | 6,2 | 41,0 | Anfrage | |
| 1012642 | 12,0 | 6,2 | 42,0 | Anfrage | |
| 1012643 | 12,0 | 6,2 | 43,0 | Anfrage | |
| 1012644 | 12,0 | 6,2 | 44,0 | Anfrage | |
| 1012645 | 12,0 | 6,2 | 45,0 | Anfrage | |
| 1012646 | 12,0 | 6,2 | 46,0 | Anfrage | |
| 1012647 | 12,0 | 6,2 | 47,0 | Anfrage | |
| 1012648 | 12,0 | 6,2 | 48,0 | Anfrage | |
| 1012649 | 12,0 | 6,2 | 49,0 | Anfrage | |
| 1012650 | 12,0 | 6,2 | 50,0 | Anfrage | |
| 1012651 | 12,0 | 6,2 | 51,0 | Anfrage | |
| 1012652 | 12,0 | 6,2 | 52,0 | Anfrage | |
| 1012653 | 12,0 | 6,2 | 53,0 | Anfrage | |
| 1012654 | 12,0 | 6,2 | 54,0 | Anfrage | |
| 1012655 | 12,0 | 6,2 | 55,0 | Anfrage | |
| 1012656 | 12,0 | 6,2 | 56,0 | Anfrage | |
| 1012657 | 12,0 | 6,2 | 57,0 | Anfrage | |
| 1012658 | 12,0 | 6,2 | 58,0 | Anfrage | |
| 1012659 | 12,0 | 6,2 | 59,0 | Anfrage | |
| 1012660 | 12,0 | 6,2 | 60,0 | Anfrage | |
| 1012661 | 12,0 | 6,2 | 61,0 | Anfrage | |
| 1012662 | 12,0 | 6,2 | 62,0 | Anfrage | |
| 1012663 | 12,0 | 6,2 | 63,0 | Anfrage | |
| 1012664 | 12,0 | 6,2 | 64,0 | Anfrage | |
| 1012665 | 12,0 | 6,2 | 65,0 | Anfrage |
Art.-Nr. 101 32 XX Außen-Ø = 12,0mm Innen-Ø = 8,2mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1013202 | 12,0 | 8,2 | 2,0 | Anfrage | |
| 1013203 | 12,0 | 8,2 | 3,0 | Anfrage | |
| 1013204 | 12,0 | 8,2 | 4,0 | Anfrage | |
| 1013205 | 12,0 | 8,2 | 5,0 | Anfrage | |
| 1013206 | 12,0 | 8,2 | 6,0 | Anfrage | |
| 1013207 | 12,0 | 8,2 | 7,0 | Anfrage | |
| 1013208 | 12,0 | 8,2 | 8,0 | Anfrage | |
| 1013209 | 12,0 | 8,2 | 9,0 | Anfrage | |
| 1013210 | 12,0 | 8,2 | 10,0 | Anfrage | |
| 1013211 | 12,0 | 8,2 | 11,0 | Anfrage | |
| 1013212 | 12,0 | 8,2 | 12,0 | Anfrage | |
| 1013213 | 12,0 | 8,2 | 13,0 | Anfrage | |
| 1013214 | 12,0 | 8,2 | 14,0 | Anfrage | |
| 1013215 | 12,0 | 8,2 | 15,0 | Anfrage | |
| 1013216 | 12,0 | 8,2 | 16,0 | Anfrage | |
| 1013217 | 12,0 | 8,2 | 17,0 | Anfrage | |
| 1013218 | 12,0 | 8,2 | 18,0 | Anfrage | |
| 1013219 | 12,0 | 8,2 | 19,0 | Anfrage | |
| 1013220 | 12,0 | 8,2 | 20,0 | Anfrage | |
| 1013221 | 12,0 | 8,2 | 21,0 | Anfrage | |
| 1013222 | 12,0 | 8,2 | 22,0 | Anfrage | |
| 1013223 | 12,0 | 8,2 | 23,0 | Anfrage | |
| 1013224 | 12,0 | 8,2 | 24,0 | Anfrage | |
| 1013225 | 12,0 | 8,2 | 25,0 | Anfrage | |
| 1013226 | 12,0 | 8,2 | 26,0 | Anfrage | |
| 1013227 | 12,0 | 8,2 | 27,0 | Anfrage | |
| 1013228 | 12,0 | 8,2 | 28,0 | Anfrage | |
| 1013229 | 12,0 | 8,2 | 29,0 | Anfrage | |
| 1013230 | 12,0 | 8,2 | 30,0 | Anfrage | |
| 1013231 | 12,0 | 8,2 | 31,0 | Anfrage | |
| 1013232 | 12,0 | 8,2 | 32,0 | Anfrage | |
| 1013233 | 12,0 | 8,2 | 33,0 | Anfrage | |
| 1013234 | 12,0 | 8,2 | 34,0 | Anfrage | |
| 1013235 | 12,0 | 8,2 | 35,0 | Anfrage | |
| 1013236 | 12,0 | 8,2 | 36,0 | Anfrage | |
| 1013237 | 12,0 | 8,2 | 37,0 | Anfrage | |
| 1013238 | 12,0 | 8,2 | 38,0 | Anfrage | |
| 1013239 | 12,0 | 8,2 | 39,0 | Anfrage | |
| 1013240 | 12,0 | 8,2 | 40,0 | Anfrage | |
| 1013241 | 12,0 | 8,2 | 41,0 | Anfrage | |
| 1013242 | 12,0 | 8,2 | 42,0 | Anfrage | |
| 1013243 | 12,0 | 8,2 | 43,0 | Anfrage | |
| 1013244 | 12,0 | 8,2 | 44,0 | Anfrage | |
| 1013245 | 12,0 | 8,2 | 45,0 | Anfrage | |
| 1013246 | 12,0 | 8,2 | 46,0 | Anfrage | |
| 1013247 | 12,0 | 8,2 | 47,0 | Anfrage | |
| 1013248 | 12,0 | 8,2 | 48,0 | Anfrage | |
| 1013249 | 12,0 | 8,2 | 49,0 | Anfrage | |
| 1013250 | 12,0 | 8,2 | 50,0 | Anfrage | |
| 1013251 | 12,0 | 8,2 | 51,0 | Anfrage | |
| 1013252 | 12,0 | 8,2 | 52,0 | Anfrage | |
| 1013253 | 12,0 | 8,2 | 53,0 | Anfrage | |
| 1013254 | 12,0 | 8,2 | 54,0 | Anfrage | |
| 1013255 | 12,0 | 8,2 | 55,0 | Anfrage | |
| 1013256 | 12,0 | 8,2 | 56,0 | Anfrage | |
| 1013257 | 12,0 | 8,2 | 57,0 | Anfrage | |
| 1013258 | 12,0 | 8,2 | 58,0 | Anfrage | |
| 1013259 | 12,0 | 8,2 | 59,0 | Anfrage | |
| 1013260 | 12,0 | 8,2 | 60,0 | Anfrage | |
| 1013261 | 12,0 | 8,2 | 61,0 | Anfrage | |
| 1013262 | 12,0 | 8,2 | 62,0 | Anfrage | |
| 1013263 | 12,0 | 8,2 | 63,0 | Anfrage |
Art.-Nr. 101 45 XX Außen-Ø = 12,0mm Innen-Ø = 9,6mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1014502 | 12,0 | 9,6 | 2,0 | Anfrage | |
| 1014503 | 12,0 | 9,6 | 3,0 | Anfrage | |
| 1014504 | 12,0 | 9,6 | 4,0 | Anfrage | |
| 1014505 | 12,0 | 9,6 | 5,0 | Anfrage | |
| 1014506 | 12,0 | 9,6 | 6,0 | Anfrage | |
| 1014507 | 12,0 | 9,6 | 7,0 | Anfrage | |
| 1014508 | 12,0 | 9,6 | 8,0 | Anfrage | |
| 1014509 | 12,0 | 9,6 | 9,0 | Anfrage | |
| 1014510 | 12,0 | 9,6 | 10,0 | Anfrage | |
| 1014511 | 12,0 | 9,6 | 11,0 | Anfrage | |
| 1014512 | 12,0 | 9,6 | 12,0 | Anfrage | |
| 1014513 | 12,0 | 9,6 | 13,0 | Anfrage | |
| 1014514 | 12,0 | 9,6 | 14,0 | Anfrage | |
| 1014515 | 12,0 | 9,6 | 15,0 | Anfrage | |
| 1014516 | 12,0 | 9,6 | 16,0 | Anfrage | |
| 1014517 | 12,0 | 9,6 | 17,0 | Anfrage | |
| 1014518 | 12,0 | 9,6 | 18,0 | Anfrage | |
| 1014519 | 12,0 | 9,6 | 19,0 | Anfrage | |
| 1014520 | 12,0 | 9,6 | 20,0 | Anfrage | |
| 1014521 | 12,0 | 9,6 | 21,0 | Anfrage | |
| 1014522 | 12,0 | 9,6 | 22,0 | Anfrage | |
| 1014523 | 12,0 | 9,6 | 23,0 | Anfrage | |
| 1014524 | 12,0 | 9,6 | 24,0 | Anfrage | |
| 1014525 | 12,0 | 9,6 | 25,0 | Anfrage | |
| 1014526 | 12,0 | 9,6 | 26,0 | Anfrage | |
| 1014527 | 12,0 | 9,6 | 27,0 | Anfrage | |
| 1014528 | 12,0 | 9,6 | 28,0 | Anfrage | |
| 1014529 | 12,0 | 9,6 | 29,0 | Anfrage | |
| 1014530 | 12,0 | 9,6 | 30,0 | Anfrage | |
| 1014531 | 12,0 | 9,6 | 31,0 | Anfrage | |
| 1014532 | 12,0 | 9,6 | 32,0 | Anfrage | |
| 1014533 | 12,0 | 9,6 | 33,0 | Anfrage | |
| 1014534 | 12,0 | 9,6 | 34,0 | Anfrage | |
| 1014535 | 12,0 | 9,6 | 35,0 | Anfrage | |
| 1014536 | 12,0 | 9,6 | 36,0 | Anfrage | |
| 1014537 | 12,0 | 9,6 | 37,0 | Anfrage | |
| 1014538 | 12,0 | 9,6 | 38,0 | Anfrage | |
| 1014539 | 12,0 | 9,6 | 39,0 | Anfrage | |
| 1014540 | 12,0 | 9,6 | 40,0 | Anfrage | |
| 1014541 | 12,0 | 9,6 | 41,0 | Anfrage | |
| 1014542 | 12,0 | 9,6 | 42,0 | Anfrage | |
| 1014543 | 12,0 | 9,6 | 43,0 | Anfrage | |
| 1014544 | 12,0 | 9,6 | 44,0 | Anfrage | |
| 1014545 | 12,0 | 9,6 | 45,0 | Anfrage | |
| 1014546 | 12,0 | 9,6 | 46,0 | Anfrage | |
| 1014547 | 12,0 | 9,6 | 47,0 | Anfrage | |
| 1014548 | 12,0 | 9,6 | 48,0 | Anfrage | |
| 1014549 | 12,0 | 9,6 | 49,0 | Anfrage | |
| 1014550 | 12,0 | 9,6 | 50,0 | Anfrage |
Art.-Nr. 101 35 XX Außen-Ø = 16,0mm Innen-Ø = 10,5mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1013502 | 16,0 | 10,5 | 2,0 | Anfrage | |
| 1013503 | 16,0 | 10,5 | 3,0 | Anfrage | |
| 1013504 | 16,0 | 10,5 | 4,0 | Anfrage | |
| 1013505 | 16,0 | 10,5 | 5,0 | Anfrage | |
| 1013506 | 16,0 | 10,5 | 6,0 | Anfrage | |
| 1013507 | 16,0 | 10,5 | 7,0 | Anfrage | |
| 1013508 | 16,0 | 10,5 | 8,0 | Anfrage | |
| 1013509 | 16,0 | 10,5 | 9,0 | Anfrage | |
| 1013510 | 16,0 | 10,5 | 10,0 | Anfrage | |
| 1013511 | 16,0 | 10,5 | 11,0 | Anfrage | |
| 1013512 | 16,0 | 10,5 | 12,0 | Anfrage | |
| 1013513 | 16,0 | 10,5 | 13,0 | Anfrage | |
| 1013514 | 16,0 | 10,5 | 14,0 | Anfrage | |
| 1013515 | 16,0 | 10,5 | 15,0 | Anfrage | |
| 1013516 | 16,0 | 10,5 | 16,0 | Anfrage | |
| 1013517 | 16,0 | 10,5 | 17,0 | Anfrage | |
| 1013518 | 16,0 | 10,5 | 18,0 | Anfrage | |
| 1013519 | 16,0 | 10,5 | 19,0 | Anfrage | |
| 1013520 | 16,0 | 10,5 | 20,0 | Anfrage | |
| 1013521 | 16,0 | 10,5 | 21,0 | Anfrage | |
| 1013522 | 16,0 | 10,5 | 22,0 | Anfrage | |
| 1013523 | 16,0 | 10,5 | 23,0 | Anfrage | |
| 1013524 | 16,0 | 10,5 | 24,0 | Anfrage | |
| 1013525 | 16,0 | 10,5 | 25,0 | Anfrage | |
| 1013526 | 16,0 | 10,5 | 26,0 | Anfrage | |
| 1013527 | 16,0 | 10,5 | 27,0 | Anfrage | |
| 1013528 | 16,0 | 10,5 | 28,0 | Anfrage | |
| 1013529 | 16,0 | 10,5 | 29,0 | Anfrage | |
| 1013530 | 16,0 | 10,5 | 30,0 | Anfrage | |
| 1013531 | 16,0 | 10,5 | 31,0 | Anfrage | |
| 1013532 | 16,0 | 10,5 | 32,0 | Anfrage | |
| 1013533 | 16,0 | 10,5 | 33,0 | Anfrage | |
| 1013534 | 16,0 | 10,5 | 34,0 | Anfrage | |
| 1013535 | 16,0 | 10,5 | 35,0 | Anfrage | |
| 1013536 | 16,0 | 10,5 | 36,0 | Anfrage | |
| 1013537 | 16,0 | 10,5 | 37,0 | Anfrage | |
| 1013538 | 16,0 | 10,5 | 38,0 | Anfrage | |
| 1013539 | 16,0 | 10,5 | 39,0 | Anfrage | |
| 1013540 | 16,0 | 10,5 | 40,0 | Anfrage | |
| 1013541 | 16,0 | 10,5 | 41,0 | Anfrage | |
| 1013542 | 16,0 | 10,5 | 42,0 | Anfrage | |
| 1013543 | 16,0 | 10,5 | 43,0 | Anfrage | |
| 1013544 | 16,0 | 10,5 | 44,0 | Anfrage | |
| 1013545 | 16,0 | 10,5 | 45,0 | Anfrage | |
| 1013546 | 16,0 | 10,5 | 46,0 | Anfrage | |
| 1013547 | 16,0 | 10,5 | 47,0 | Anfrage | |
| 1013548 | 16,0 | 10,5 | 48,0 | Anfrage | |
| 1013549 | 16,0 | 10,5 | 49,0 | Anfrage | |
| 1013550 | 16,0 | 10,5 | 50,0 | Anfrage |
Art.-Nr. 101 31 XX Außen-Ø = 16,0mm Innen-Ø = 12,4mm
| Art.-Nr. | D (mm) | d (mm) | L (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1013102 | 16,0 | 12,4 | 2,0 | Anfrage | |
| 1013103 | 16,0 | 12,4 | 3,0 | Anfrage | |
| 1013104 | 16,0 | 12,4 | 4,0 | Anfrage | |
| 1013105 | 16,0 | 12,4 | 5,0 | Anfrage | |
| 1013106 | 16,0 | 12,4 | 6,0 | Anfrage | |
| 1013107 | 16,0 | 12,4 | 7,0 | Anfrage | |
| 1013108 | 16,0 | 12,4 | 8,0 | Anfrage | |
| 1013109 | 16,0 | 12,4 | 9,0 | Anfrage | |
| 1013110 | 16,0 | 12,4 | 10,0 | Anfrage | |
| 1013111 | 16,0 | 12,4 | 11,0 | Anfrage | |
| 1013112 | 16,0 | 12,4 | 12,0 | Anfrage | |
| 1013113 | 16,0 | 12,4 | 13,0 | Anfrage | |
| 1013114 | 16,0 | 12,4 | 14,0 | Anfrage | |
| 1013115 | 16,0 | 12,4 | 15,0 | Anfrage | |
| 1013116 | 16,0 | 12,4 | 16,0 | Anfrage | |
| 1013117 | 16,0 | 12,4 | 17,0 | Anfrage | |
| 1013118 | 16,0 | 12,4 | 18,0 | Anfrage | |
| 1013119 | 16,0 | 12,4 | 19,0 | Anfrage | |
| 1013120 | 16,0 | 12,4 | 20,0 | Anfrage | |
| 1013121 | 16,0 | 12,4 | 21,0 | Anfrage | |
| 1013122 | 16,0 | 12,4 | 22,0 | Anfrage | |
| 1013123 | 16,0 | 12,4 | 23,0 | Anfrage | |
| 1013124 | 16,0 | 12,4 | 24,0 | Anfrage | |
| 1013125 | 16,0 | 12,4 | 25,0 | Anfrage | |
| 1013126 | 16,0 | 12,4 | 26,0 | Anfrage | |
| 1013127 | 16,0 | 12,4 | 27,0 | Anfrage | |
| 1013128 | 16,0 | 12,4 | 28,0 | Anfrage | |
| 1013129 | 16,0 | 12,4 | 29,0 | Anfrage | |
| 1013130 | 16,0 | 12,4 | 30,0 | Anfrage | |
| 1013131 | 16,0 | 12,4 | 31,0 | Anfrage | |
| 1013132 | 16,0 | 12,4 | 32,0 | Anfrage | |
| 1013133 | 16,0 | 12,4 | 33,0 | Anfrage | |
| 1013134 | 16,0 | 12,4 | 34,0 | Anfrage | |
| 1013135 | 16,0 | 12,4 | 35,0 | Anfrage | |
| 1013136 | 16,0 | 12,4 | 36,0 | Anfrage | |
| 1013137 | 16,0 | 12,4 | 37,0 | Anfrage | |
| 1013138 | 16,0 | 12,4 | 38,0 | Anfrage | |
| 1013139 | 16,0 | 12,4 | 39,0 | Anfrage | |
| 1013140 | 16,0 | 12,4 | 40,0 | Anfrage | |
| 1013141 | 16,0 | 12,4 | 41,0 | Anfrage | |
| 1013142 | 16,0 | 12,4 | 42,0 | Anfrage | |
| 1013143 | 16,0 | 12,4 | 43,0 | Anfrage | |
| 1013144 | 16,0 | 12,4 | 44,0 | Anfrage | |
| 1013145 | 16,0 | 12,4 | 45,0 | Anfrage | |
| 1013146 | 16,0 | 12,4 | 46,0 | Anfrage | |
| 1013147 | 16,0 | 12,4 | 47,0 | Anfrage | |
| 1013148 | 16,0 | 12,4 | 48,0 | Anfrage | |
| 1013149 | 16,0 | 12,4 | 49,0 | Anfrage | |
| 1013150 | 16,0 | 12,4 | 50,0 | Anfrage |
Produktneuheiten
KB-PP Kabelbinder
- gute Steifigkeit
- hohe Schlagfestigkeit
- beständig gegen Brüchigkeit bei niedrigen Temperaturen
- Das Harz erfüllt die Anforderungen für den Kontakt mit Lebensmitteln (FDA; 21CFR 177.1520)
- Einsatztemperatur: -20°C bis +75°C
- Material: Polypropylen, UL94HB
- Farbe: schwarz / weiß
DIN 6900 Kombischrauben
- Kopfform: Linsenkopf DIN 7985
- Antrieb: Innensechsrund / Torx
- mit Federring ähnlich DIN 127/128 / DIN 6905 - Z4
- mit Unterlegscheibe ähnlich DIN 125 / DIN 6902 A - Z1
- Material: Edelstahl A2
Unsere Services
Sie wünschen Beratung?
Wir freuen uns, wenn Sie mit uns Kontakt aufnehmen. Wir unterstützen Sie gerne!
