ABS-IA-M3 - SW5,5 Abstandsbolzen
Merkmale
- 6-kant Abstandsbolzen
- Außengewinde: M3
- Innengewinde: M3
- Schlüsselweite (SW) 5,5
- Außengewinde mit Hinterstich nach DIN 76
(kein Buchstabe "H" in der Art.-Nr. bedeutet "ohne Hinterstich") - Material: Stahl verzinkt
- weitere Abmessungen und Größen auf Anfrage

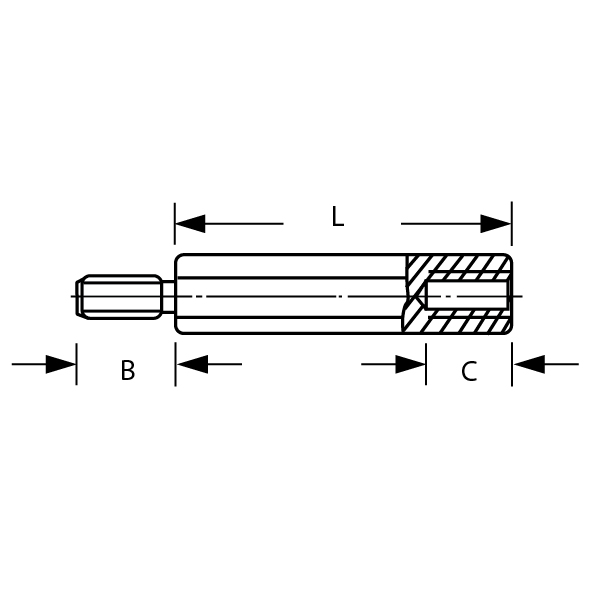

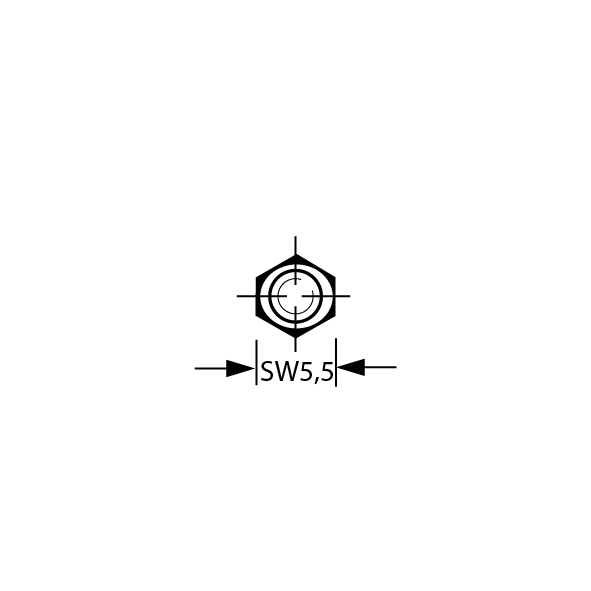

Technische Zeichnungen
Abmessungen in mm
Produktvarianten
Typen, Maße und weitere Daten
| Art.-Nr. | L (mm) | B (mm) | C (mm) | Datenblatt | |
|---|---|---|---|---|---|
| 1060304H | 4,0 | 6,0 | 2,5 | Anfrage | |
| 1060305HB3,5 | 5,0 | 3,5 | 3,0 | Anfrage | |
| 1060305HB4 | 5,0 | 4,0 | 3,0 | Anfrage | |
| 1060305B5 | 5,0 | 5,0 | 3,0 | Anfrage | |
| 1060305HB5 | 5,0 | 5,0 | 3,0 | Anfrage | |
| 1060305H | 5,0 | 6,0 | 3,0 | Anfrage | |
| 1060305HB12 | 5,0 | 12,0 | 3,0 | Anfrage | |
| 1060306H | 6,0 | 6,0 | 4,0 | Anfrage | |
| 1060307HB4 | 7,0 | 4,0 | 4,0 | Anfrage | |
| 1060307H | 7,0 | 6,0 | 4,0 | Anfrage | |
| 1060307,5H | 7,5 | 6,0 | 4,0 | Anfrage | |
| 1060308H | 8,0 | 6,0 | 5,0 | Anfrage | |
| 1060308HB4 | 8,0 | 4,0 | 5,0 | Anfrage | |
| 1060308,5HB3,5 | 8,5 | 3,5 | 5,0 | Anfrage | |
| 1060309HB4 | 9,0 | 4,0 | 6,0 | Anfrage | |
| 1060309H | 9,0 | 6,0 | 5,0 | Anfrage | |
| 1060310HB3,5 | 10,0 | 3,5 | 6,0 | Anfrage | |
| 1060310H | 10,0 | 6,0 | 6,0 | Anfrage | |
| 1060310HB8 | 10,0 | 8,0 | 6,0 | Anfrage | |
| 1060311H | 11,0 | 6,0 | 6,0 | Anfrage | |
| 1060311,5H | 11,5 | 6,0 | 6,0 | Anfrage | |
| 1060312H | 12,0 | 6,0 | 6,0 | Anfrage | |
| 1060312,5HB6 | 12,5 | 6,0 | 6,0 | Anfrage | |
| 1060313H | 13,0 | 6,0 | 6,0 | Anfrage | |
| 1060313,5H | 13,5 | 6,0 | 6,0 | Anfrage | |
| 1060314H | 14,0 | 6,0 | 6,0 | Anfrage | |
| 1060315HB3 | 15,0 | 3,0 | 6,0 | Anfrage | |
| 1060315HB3,5 | 15,0 | 3,5 | 6,0 | Anfrage | |
| 1060315H | 15,0 | 6,0 | 6,0 | Anfrage | |
| 1060316HB3,5 | 16,0 | 3,5 | 6,0 | Anfrage | |
| 1060316H | 16,0 | 6,0 | 6,0 | Anfrage | |
| 1060316,5HB5 | 16,5 | 5,0 | 6,0 | Anfrage | |
| 1060316,5H | 16,5 | 6,0 | 6,0 | Anfrage | |
| 1060317HB3 | 17,0 | 3,0 | 6,0 | Anfrage | |
| 1060317HB3,5 | 17,0 | 3,5 | 6,0 | Anfrage | |
| 1060317HB4 | 17,0 | 4,0 | 6,0 | Anfrage | |
| 1060317H | 17,0 | 6,0 | 7,0 | Anfrage | |
| 1060317HB10 | 17,0 | 10,0 | 6,0 | Anfrage | |
| 1060317,5H | 17,5 | 6,0 | 6,0 | Anfrage | |
| 1060318H | 18,0 | 6,0 | 6,0 | Anfrage | |
| 1060318,5H | 18,5 | 6,0 | 6,0 | Anfrage | |
| 1060320H | 20,0 | 6,0 | 6,0 | Anfrage | |
| 1060321H | 21,0 | 6,0 | 6,0 | Anfrage | |
| 1060322H | 22,0 | 6,0 | 6,0 | Anfrage | |
| 1060323H | 23,0 | 6,0 | 7,0 | Anfrage | |
| 1060324H | 24,0 | 6,0 | 6,0 | Anfrage | |
| 1060325H | 25,0 | 6,0 | 6,0 | Anfrage | |
| 1060326H | 26,0 | 6,0 | 6,0 | Anfrage | |
| 1060327H | 27,0 | 6,0 | 6,0 | Anfrage | |
| 1060328H | 28,0 | 6,0 | 6,0 | Anfrage | |
| 1060329H | 29,0 | 6,0 | 6,0 | Anfrage | |
| 1060330H | 30,0 | 6,0 | 6,0 | Anfrage | |
| 1060330HB10 | 30,0 | 10,0 | 10,0 | Anfrage | |
| 1060330HB15 | 30,0 | 15,0 | 6,0 | Anfrage | |
| 1060331H | 31,0 | 6,0 | 10,0 | Anfrage | |
| 1060331,5H | 31,5 | 6,0 | 7,0 | Anfrage | |
| 1060332H | 32,0 | 6,0 | 6,0 | Anfrage | |
| 1060332,7HB6 | 32,7 | 6,0 | 6,0 | Anfrage | |
| 1060333H | 33,0 | 6,0 | 6,0 | Anfrage | |
| 1060334H | 34,0 | 6,0 | 6,0 | Anfrage | |
| 1060335H | 35,0 | 6,0 | 7,0 | Anfrage | |
| 1060336H | 36,0 | 6,0 | 6,0 | Anfrage | |
| 1060336HB16 | 36,0 | 16,0 | 6,0 | Anfrage | |
| 1060337HB4 | 37,0 | 4,0 | 7,0 | Anfrage | |
| 1060338H | 38,0 | 6,0 | 6,0 | Anfrage | |
| 1060339H | 39,0 | 6,0 | 6,0 | Anfrage | |
| 1060340H | 40,0 | 6,0 | 7,0 | Anfrage | |
| 1060343H | 43,0 | 6,0 | 6,0 | Anfrage | |
| 1060344HB6 | 44,0 | 6,0 | 10,0 | Anfrage | |
| 1060345H | 45,0 | 6,0 | 6,0 | Anfrage | |
| 1060347H | 47,0 | 6,0 | 6,0 | Anfrage | |
| 1060348H | 48,0 | 6,0 | 6,0 | Anfrage | |
| 1060348HB16 | 48,0 | 16,0 | 6,0 | Anfrage | |
| 1060348,5H | 48,5 | 6,0 | 6,0 | Anfrage | |
| 1060350H | 50,0 | 6,0 | 6,0 | Anfrage | |
| 1060353H | 53,0 | 6,0 | 6,0 | Anfrage | |
| 1060355H | 55,0 | 6,0 | 6,0 | Anfrage | |
| 1060355HB11 | 55,0 | 11,0 | 6,0 | Anfrage | |
| 1060358H | 58,0 | 6,0 | 6,0 | Anfrage | |
| 1060360H | 60,0 | 6,0 | 6,0 | Anfrage | |
| 1060370H | 70,0 | 6,0 | 6,0 | Anfrage | |
| 1060375H | 75,0 | 6,0 | 6,0 | Anfrage | |
| 1060380H | 80,0 | 6,0 | 6,0 | Anfrage | |
| 1060385H | 85,0 | 6,0 | 6,0 | Anfrage | |
| 1060388H | 88,0 | 6,0 | 6,0 | Anfrage | |
| 1060390H | 90,0 | 6,0 | 6,0 | Anfrage | |
| 10603100H | 100,0 | 6,0 | 6,0 | Anfrage | |
| 10603120H | 120,0 | 6,0 | 6,0 | Anfrage |
